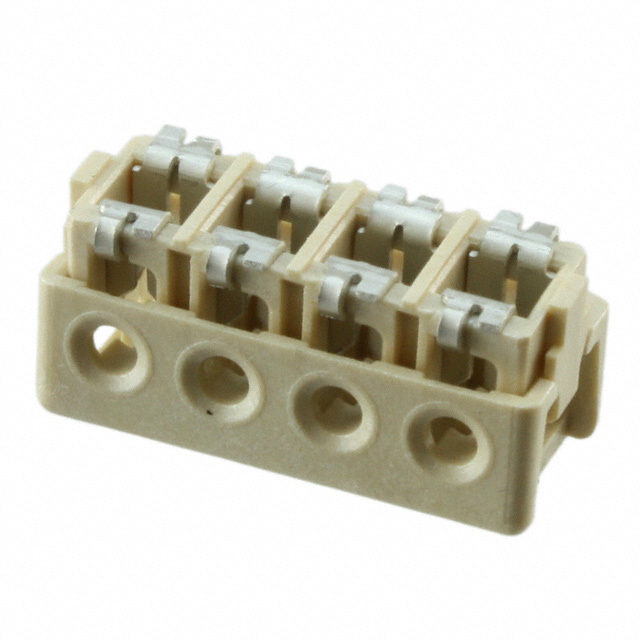

2-2106003-4

Share

Or copy the link below:

Mfr.Part #
2-2106003-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN WIRE IDC 4POS 22AWG SMD RA
Stock
312,104
In Stock :
312,104

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Board In, Direct Wire to Board
Cable Termination :
IDC
Mounting Type :
Surface Mount, Right Angle
Insulation Diameter :
1.7 mm
Wire/Cable Gauge :
22 AWG
Color :
Natural
Max Voltage Rating (AC) :
250V
REACH SVHC :
No SVHC
Current Rating :
7A
Contact Material :
Copper
Contact Current Rating :
7A
Length :
17.7mm
Approval Agency :
CSA
Termination :
SMD/SMT
Wire/Cable Type :
Discrete
Housing Material :
Polymer
Board-Side Pitch :
0.157 4.00mm
Number of Positions Loaded :
All
Orientation :
RIGHT ANGLE
Contact Plating :
Tin
Contact Finish :
Tin
Radiation Hardening :
No
Housing Color :
Natural
Flammability Rating :
UL94 V-0
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Circuit Application :
Power
Keyed :
No
Factory Lead Time :
9 Weeks
Min Operating Temperature :
-40°C
Feature :
Closed End
Gender :
Receptacle
Published :
2010
RoHS Status :
RoHS Compliant
Depth :
7.75mm
ELV :
Compliant
Connector Type :
Individual Wires
Max Voltage Rating (DC) :
250V
Number of Positions :
4
Height :
5.7912mm
Width :
7.747mm
Mount :
Surface Mount
Sealable :
No
Pitch :
3.9878mm
Packaging :
Tape and Reel (TR)
Cable Pitch :
0.157 4.00mm
Wire Gauge :
22 AWG
Voltage - Rated :
250V
Max Operating Temperature :
221°C
Make First / Break Last :
No
Lifecycle Status :
ACTIVE (Last Updated: 6 days ago)
Number of Contacts :
4
Number of Rows :
1
Datasheets
2-2106003-4
Introducing Board In, Direct Wire to Board TE Connectivity AMP Connectors 2-2106003-4 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Right Angle, 2-2106003-4 pinout, 2-2106003-4 datasheet PDF, 2-2106003-4 amp .Beyond Board In, Direct Wire to Board TE Connectivity AMP Connectors 2-2106003-4 ,we also offer CA2310PA10Z, 215570-4, 009175002702906, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 2-2106003-4


2-2106003-4 datasheet pdf and Rectangular Connectors - Board In, Direct Wire to Board product details from TE Connectivity AMP Connectors stock available at Xinshop
