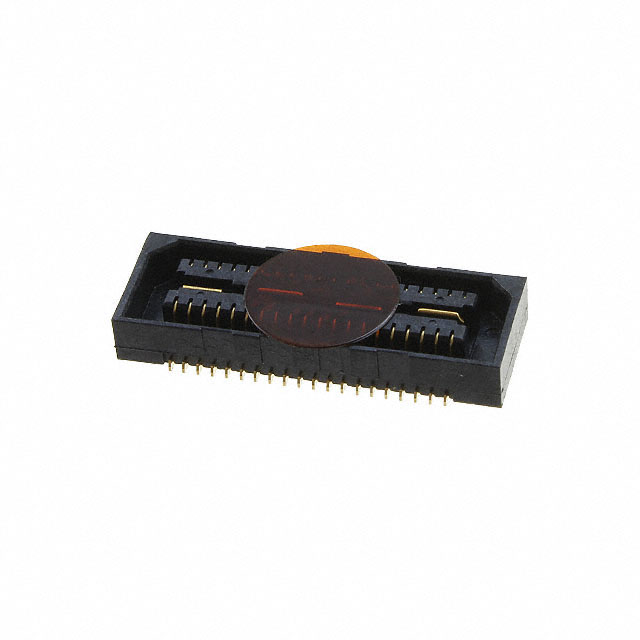

2-1658012-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Height :

3.05mm

RoHS Status :

RoHS Compliant

Housing Color :

Black

Series :

MICTOR

Row Spacing :

3.463823 mm

Height Above Board :

0.128 3.25mm

Feature :

Board Guide, Ground Bus (Plane)

Published :

2007

Mounting Type :

Surface Mount

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

ELV :

Compliant

Sealable :

No

Contact Current Rating :

1.25A

Stack Height (Mating) :

5mm 8mm 11mm 14mm 16mm 19mm 22mm 25mm 30mm

Min Operating Temperature :

-85°C

Contact Gender :

FEMALE

Contact Finish :

Gold

Contact Finish Thickness - Mating :

249.9995 nm

Polarization Key :

POLARIZED HOUSING

PCB Mount Alignment :

With

Operating Supply Voltage :

125V

Contact Pattern :

RECTANGULAR

Orientation :

Vertical

Pitch :

0.031 0.80mm

Plating Thickness :

250 nm

Stack Height :

25mm

Mount :

Surface Mount

Body Depth :

0.133 inch

Durability :

100 Cycles

Body Length or Diameter :

0.838 inch

Contact Material :

Bronze

Dielectric Withstanding Voltage :

675VAC V

Reliability :

COMMERCIAL

Connector Type :

Receptacle, Center Strip Contacts

Number of Positions :

40

Housing Material :

Polymer

Insulation Resistance :

2MOhm

Packaging :

Tray

Number of Conductors :

ONE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

40

Contact Finish Thickness :

10.0μin 0.25μm

Number of Rows :

2

PCB Contact Pattern :

RECTANGULAR

Mating Alignment :

Without

Termination :

SMD/SMT

Impedance :

50Ohm

Factory Lead Time :

11 Weeks

Contact Plating :

Gold, Nickel

Number Of PCB Rows :

2

Max Operating Temperature :

257°C
