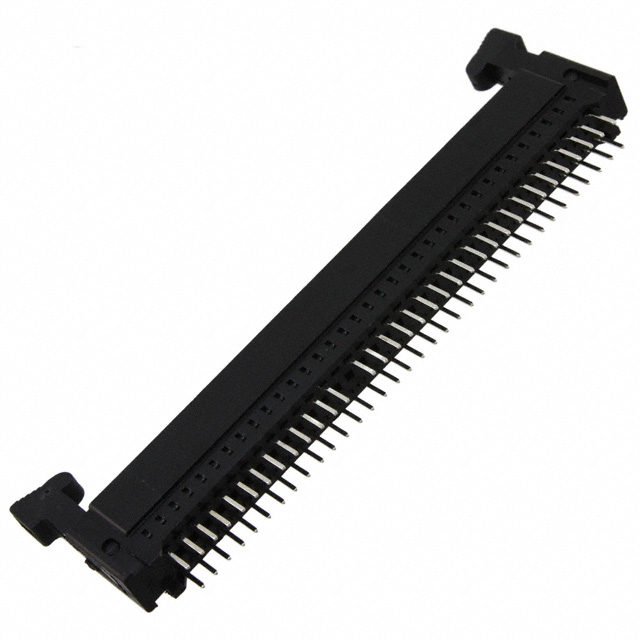

2-145459-5
Or copy the link below:
- Mfr.Part #
- 2-145459-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 70POS 0.100
- Stock
- 36,793
- In Stock ：
- 36,793
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Number of Positions :
- 70 (69 Loaded)
- Rated Current (Signal) :
- 3A
- Color :
- Black
- Orientation :
- Straight
- Feature :
- Latches
- Contact Material :
- Phosphor Bronze
- Contact Finish :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Length :
- 3.81mm
- Mount :
- Through Hole
- Length - Termination :
- 0.15 inch
- Card Type :
- Non Specified - Dual Edge
- Plating Thickness :
- 30μin
- Number of Conductors :
- ONE
- Dielectric Withstanding Voltage :
- 1400VAC V
- Packaging :
- Bulk
- Body Length or Diameter :
- 3.944 inch
- Number of Rows :
- 2
- Body Breadth :
- 0.368 inch
- Contact Style :
- BELLOWED TYPE
- Option :
- GENERAL PURPOSE
- Underplate Material :
- Nickel
- Connector Type :
- CARD EDGE CONNECTOR
- Material - Insulation :
- Polyester, Glass Filled
- Contact Resistance :
- 10MOhm
- Reference Standard :
- UL, CSA
- Lead Pitch :
- 2.54mm
- Number Of PCB Rows :
- 2
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- PCB Mounting Orientation :
- Vertical
- Termination :
- Solder
- Additional Feature :
- LATCHED, POLARIZED
- Operating Temperature :
- -55°C~ 85°C
- Insulation Resistance :
- 5000000000Ohm
- Reliability :
- COMMERCIAL
- MIL Conformance :
- No
- IEC Conformance :
- No
- Body/Shell Style :
- Receptacle
- Series :
- Standard Edge II
- Row Spacing :
- 4.84 mm
- Mounting Type :
- Through Hole
- DIN Conformance :
- No
- Published :
- 2007
- Housing Material :
- Polyester
- RoHS Status :
- Non-RoHS Compliant
- HTS Code :
- 8536.69.40.40
- Filter Feature :
- No
- ELV :
- Compliant
- Number of Contacts :
- 70
- Read Out :
- Dual
- Factory Lead Time :
- 13 Weeks
- Contact Pattern :
- RECTANGULAR
- JESD-609 Code :
- e4
- PCB Contact Pattern :
- RECTANGULAR
- Contact Plating :
- Gold, Tin
- Gender :
- FEMALE
- ECCN Code :
- EAR99
- Mixed Contacts :
- No
- Pitch :
- 0.100 2.54mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Body Depth :
- 0.61 inch
- Datasheets
- 2-145459-5
Female Black 0.100 2.54mm Phosphor Bronze 2 Rows Bulk Solder Gold 70 (69 Loaded) Positions Polyester, Glass Filled
2-145459-5 Overview
Material was packaged according to Bulk's specifications.It's best to mount type Through Hole.Devices are connected through connector sockets CARD EDGE CONNECTOR.It has Latches features.The Standard Edge II indicates the series number of the device.It is important to note that this chip has the following additional features: LATCHED, POLARIZED
2-145459-5 Features
Standard Edge II series
2-145459-5 Applications
There are a lot of TE Connectivity AMP Connectors
2-145459-5 Edgeboard Connectors applications.
