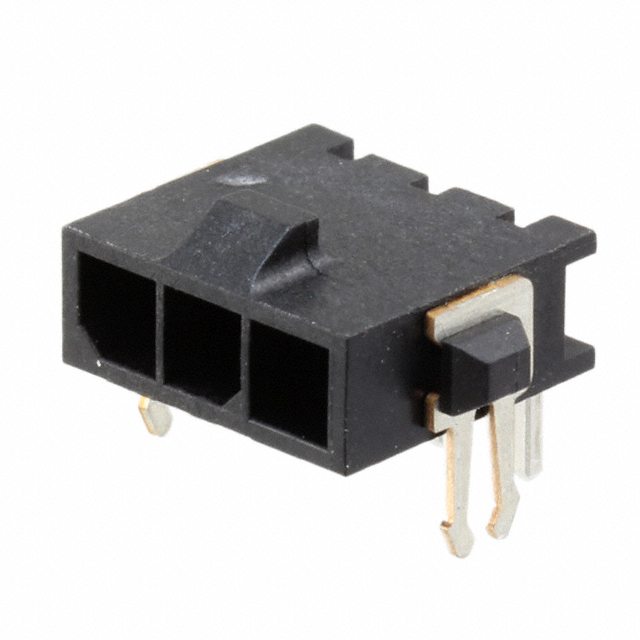

2-1445097-3
Or copy the link below:
- Mfr.Part #
- 2-1445097-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 3POS 3MM
- Stock
- 1,816
- In Stock ：
- 1,816
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Plating Thickness :
- 2.54μm
- Contact Material :
- Brass
- Contact Length - Post :
- 0.114 2.90mm
- Sealable :
- No
- Width :
- 8.92mm
- Feature :
- Board Lock
- Pitch :
- 2.9972mm
- Operating Supply Voltage :
- 250V
- Fastening Type :
- Locking Ramp
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Rows :
- 1
- Insulation Material :
- Polyamide (PA), Nylon
- Applications :
- GENERAL PURPOSE
- Material Flammability Rating :
- UL94 V-0
- Circuit Application :
- Power
- Approval Agency :
- CSA
- Depth :
- 8.92mm
- Insulation Height :
- 0.152 3.85mm
- Number of Positions :
- 3
- Factory Lead Time :
- 19 Weeks
- RoHS Status :
- RoHS Compliant
- Min Operating Temperature :
- -40°C
- Number of Positions Loaded :
- All
- Packaging :
- Tray
- Contact Finish - Mating :
- Gold
- Connector Type :
- Header
- Termination :
- Solder
- Operating Temperature :
- -40°C~105°C
- Lead Free :
- Lead Free
- Insulation Color :
- Black
- Radiation Hardening :
- No
- Contact Current Rating :
- 5A
- Housing Material :
- Nylon
- Contact Type :
- Male Pin
- Plating :
- Gold
- Contact Shape :
- Square
- Color :
- Black
- Contact Plating :
- Tin, Gold
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Retention :
- Without
- Published :
- 2002
- PCB Thickness :
- 62μm
- Mount :
- Through Hole
- Voltage - Rated :
- 250V
- Number of Contacts :
- 3
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Ports :
- 1
- Pitch - Mating :
- 0.118 3.00mm
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Operating Temperature :
- 221°C
- Number of Terminations :
- 3
- VDE Tested :
- yes
- ELV :
- Compliant
- Series :
- Micro MATE-N-LOK
- Current Rating :
- 5A
- Height :
- 3.86mm
- Max Voltage Rating (AC) :
- 250V
- Number of Pins :
- 3
- Contact Finish - Post :
- Tin
- Style :
- Board to Cable/Wire
- Number of Power Positions :
- 3
- Housing Color :
- Black
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Shrouding :
- Shrouded - 4 Wall
- PCB Mounting Orientation :
- RIGHT ANGLE
- Length :
- 13.14mm
- Datasheets
- 2-1445097-3
Micro MATE-N-LOK Series 1-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyamide (PA), Nylon 3-Position Board to Cable/Wire 0.152 3.85mm Height
2-1445097-3 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tray case is used.It belongs to the Micro MATE-N-LOK Series of products.The device is equipped with 3 pins.It's best to use it when the temperature is below 221°C.This device must operate at a minimum temperature of -40°C.It features 1 ports for managing a variety of tasks.General Purpose is a possible application for the device.Its Board Lock feature renders it more powerful in many ways.The part is mounted by Through Hole.The chip has 3 terminations.This memory's operating supply voltage is 250V.The device runs in -40°C~105°C Operating Temperature.
2-1445097-3 Features
3 basic kinds of terminations
Micro MATE-N-LOK series
2-1445097-3 Applications
There are a lot of TE Connectivity AMP Connectors
2-1445097-3 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
