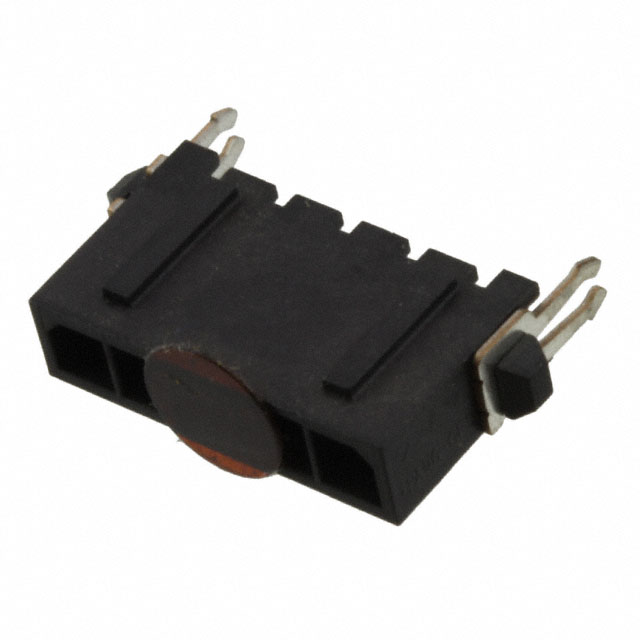

2-1445095-5
Or copy the link below:
- Mfr.Part #
- 2-1445095-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 5POS 3MM
- Stock
- 41,466
- In Stock ：
- 41,466
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Feature :
- Board Lock, Pick and Place
- Pitch - Mating :
- 0.118 3.00mm
- Termination :
- Solder
- Packaging :
- Tape and Reel (TR)
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Positions Loaded :
- All
- Plating :
- Gold
- Contact Finish - Post :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Locking Ramp
- Published :
- 2008
- Mount :
- Surface Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Factory Lead Time :
- 15 Weeks
- Housing Material :
- Nylon
- Insulation Material :
- Polyamide (PA), Nylon
- Shrouding :
- Shrouded - 4 Wall
- Orientation :
- Vertical
- Number of Positions :
- 5
- Radiation Hardening :
- No
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Current Rating :
- 5A
- Contact Retention :
- Without
- Number of Contacts :
- 5
- Number of Rows :
- 1
- Insulation Color :
- Black
- Contact Plating :
- Gold, Tin
- Sealable :
- No
- Series :
- Micro MATE-N-LOK
- Pitch :
- 3mm
- Length :
- 19mm
- Width :
- 3.86mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Mounting Type :
- Surface Mount
- Operating Supply Voltage :
- 250V
- Number of Power Positions :
- 5
- Circuit Application :
- Power
- Housing Color :
- Black
- Contact Type :
- Male Pin
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Insulation Height :
- 0.364 9.25mm
- ELV :
- Compliant
- Plating Thickness :
- 760 nm
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Contact Finish - Mating :
- Gold
- Color :
- Black
- Applications :
- GENERAL PURPOSE
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~105°C
- Voltage - Rated :
- 250V
- Contact Material :
- Brass
- Datasheets
- 2-1445095-5
Micro MATE-N-LOK Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Gold Polyamide (PA), Nylon 5-Position Board to Cable/Wire 0.364 9.25mm Height
2-1445095-5 Overview
The product comes in a package of Header.Surface Mount is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the Micro MATE-N-LOK Series.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Board Lock, Pick and Place feature.It is mounted by Surface Mount.Its operating supply voltage is 250V.It operates at an operating temperature of -40°C~105°C.
2-1445095-5 Features
Micro MATE-N-LOK series
2-1445095-5 Applications
There are a lot of TE Connectivity AMP Connectors
2-1445095-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
