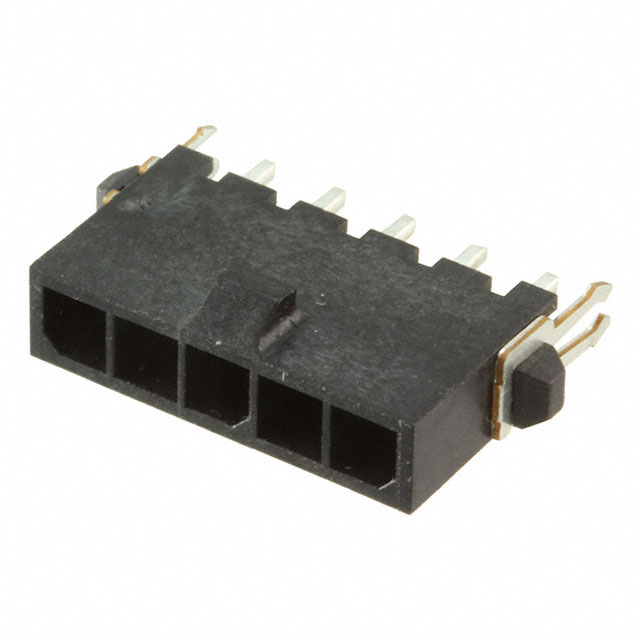

2-1445094-5
Or copy the link below:
- Mfr.Part #
- 2-1445094-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 3MM
- Stock
- 374
- In Stock ：
- 374
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Through Hole
- Contact Plating :
- Tin, Gold
- Termination :
- Solder
- PCB Contact Pattern :
- RECTANGULAR
- Terminal Pitch :
- 2.9972mm
- Contact Shape :
- Square
- Shrouding :
- Shrouded - 4 Wall
- Sealable :
- No
- Published :
- 2002
- Operating Supply Voltage :
- 250V
- Contact Length - Post :
- 0.125 3.18mm
- Applications :
- GENERAL PURPOSE
- Packaging :
- Tray
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Number Of PCB Rows :
- 1
- Contact Current Rating :
- 5A
- Insulation Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Depth :
- 5.67mm
- Contact Type :
- Male Pin
- IEC Conformance :
- No
- Length :
- 19.14mm
- ELV :
- Compliant
- Pbfree Code :
- yes
- Feature :
- Board Lock
- Mount :
- Through Hole
- MIL Conformance :
- No
- Approval Agency :
- CSA
- DIN Conformance :
- No
- PCB Thickness :
- 62μm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Width :
- 3.86mm
- Plating Thickness :
- 2.54μm
- Current Rating :
- 5A
- Contact Finish - Post :
- Tin
- Contact Finish - Mating :
- Gold
- Insulation Height :
- 0.364 9.25mm
- Reliability :
- COMMERCIAL
- Max Voltage Rating (AC) :
- 250V
- Mixed Contacts :
- No
- Orientation :
- Vertical
- Pitch - Mating :
- 0.118 3.00mm
- UL Flammability Code :
- 94V-0
- Contact Gender :
- Male
- Current Rating (Amps) :
- Varies by WireGAuge
- Height :
- 9.24mm
- Empty Shell :
- No
- Contact Material :
- Brass
- Body Breadth :
- 0.223 inch
- Filter Feature :
- No
- Series :
- Micro MATE-N-LOK
- Fastening Type :
- Locking Ramp
- Factory Lead Time :
- 18 Weeks
- Circuit Application :
- Power
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Material :
- Polyamide (PA), Nylon
- VDE Tested :
- yes
- Number of Rows :
- 1
- Style :
- Board to Cable/Wire
- Operating Temperature :
- -40°C~105°C
- Number of Positions :
- 5
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Polarization Key :
- POLARIZED HOUSING
- Contact Retention :
- Without
- RoHS Status :
- RoHS Compliant
- Number of Conductors :
- ONE
- Housing Material :
- Nylon
- Datasheets
- 2-1445094-5
Micro MATE-N-LOK Series 1-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA), Nylon 5-Position Board to Cable/Wire 0.364 9.25mm Height
2-1445094-5 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Micro MATE-N-LOK Series.A possible application for the device is General Purpose.In many ways, its Board Lock feature makes it more powerful.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -40°C~105°C Operating Temperature.
2-1445094-5 Features
Micro MATE-N-LOK series
2-1445094-5 Applications
There are a lot of TE Connectivity AMP Connectors
2-1445094-5 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
