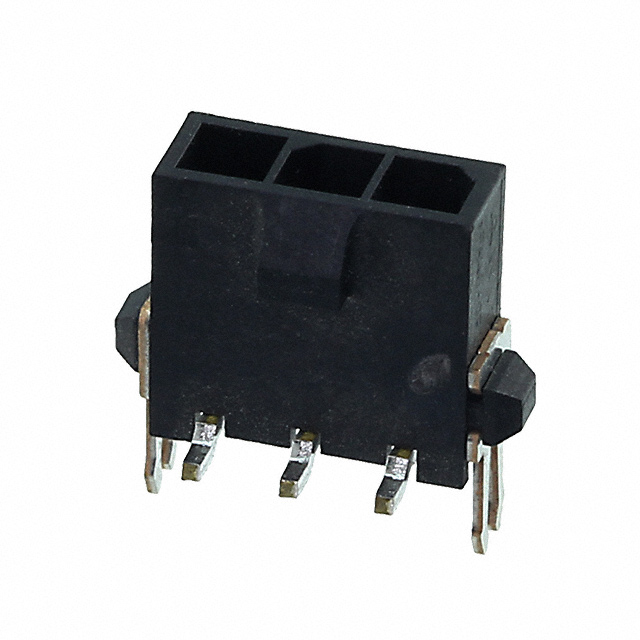

2-1445086-3
Or copy the link below:
- Mfr.Part #
- 2-1445086-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 3POS 3MM
- Stock
- 40,405
- In Stock ：
- 40,405
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 1
- Series :
- Micro MATE-N-LOK
- Length :
- 13mm
- Mount :
- Surface Mount
- Terminal Pitch :
- 2.9972mm
- Insulation Color :
- Black
- Reliability :
- COMMERCIAL
- Contact Material :
- Brass
- ELV :
- Compliant
- Number of Positions Loaded :
- All
- DIN Conformance :
- No
- Pitch - Mating :
- 0.118 3.00mm
- Pbfree Code :
- yes
- Mounting Type :
- Surface Mount
- Insulation Material :
- Polyamide (PA), Nylon
- Shrouding :
- Shrouded - 4 Wall
- Contact Plating :
- Gold, Tin
- Operating Supply Voltage :
- 250V
- Fastening Type :
- Locking Ramp
- Empty Shell :
- No
- Reference Standard :
- UL, CSA
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Shape :
- Square
- Style :
- Board to Cable/Wire
- Number of Power Positions :
- 3
- Connector Type :
- Header
- Contact Finish - Mating :
- Gold
- IEC Conformance :
- No
- UL Flammability Code :
- 94V-0
- Contact Type :
- Male Pin
- Orientation :
- Vertical
- Operating Temperature :
- -40°C~105°C
- Termination :
- Solder
- Contact Retention :
- Without
- Current Rating :
- 5A
- Housing Material :
- Nylon
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Plating Thickness :
- 380 nm
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Insulation Height :
- 0.364 9.25mm
- Width :
- 9.24mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Finish - Post :
- Tin
- Mixed Contacts :
- No
- Applications :
- GENERAL PURPOSE
- Number of Conductors :
- ONE
- Sealable :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Filter Feature :
- No
- Feature :
- Board Lock, Pick and Place
- Published :
- 2005
- Circuit Application :
- Power
- Polarization Key :
- POLARIZED HOUSING
- Packaging :
- Tape and Reel (TR)
- Voltage - Rated :
- 250V
- Number Of PCB Rows :
- 1
- MIL Conformance :
- No
- Total Number of Contacts :
- 3
- Factory Lead Time :
- 13 Weeks
- Datasheets
- 2-1445086-3
2-1445086-3 Documents
Micro MATE-N-LOK Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Gold Polyamide (PA), Nylon Board to Cable/Wire 0.364 9.25mm Height
2-1445086-3 Overview
Packaging is in the form of Header.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the Micro MATE-N-LOK Series.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Board Lock, Pick and Place feature.There is a mounting hole at Surface Mount.It runs on 250V voltage.Devices operate at -40°C~105°C operating temperatures.
2-1445086-3 Features
Micro MATE-N-LOK series
2-1445086-3 Applications
There are a lot of TE Connectivity AMP Connectors
2-1445086-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
