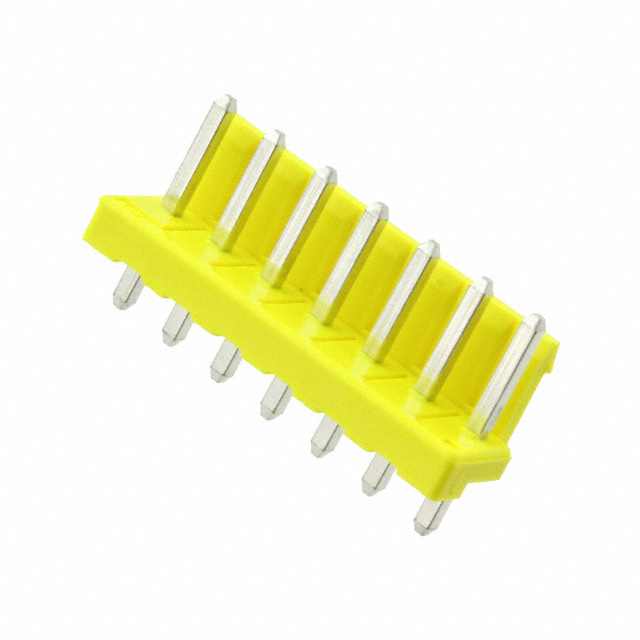

2-1123723-7
Or copy the link below:
- Mfr.Part #
- 2-1123723-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 3.96MM
- Stock
- 30,287
- In Stock ：
- 30,287
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Style :
- Board to Cable/Wire
- Material :
- Nylon
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Sealable :
- No
- Length :
- 27.65806mm
- Mating Retention :
- With
- PCB Mounting Orientation :
- Vertical
- Operating Supply Voltage :
- 250V
- Published :
- 2005
- Overall Contact Length :
- 0.567 14.40mm
- Height :
- 8.2mm
- Contact Plating :
- Tin
- Plating :
- Tin
- Contact Length - Mating :
- 0.303 7.70mm
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Housing Color :
- Yellow
- Length - Tail :
- 3.7mm
- Termination :
- Solder
- Contact Current Rating :
- 7.5A
- Contact Style :
- Straight
- PCB Mount Retention :
- Without
- Contact Shape :
- Square
- PCB Mount Alignment :
- Without
- Number of Rows :
- 1
- Width :
- 10.7mm
- Number of Positions :
- 7
- Fastening Type :
- Friction Lock
- Color :
- Yellow
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Pitch - Mating :
- 0.156 3.96mm
- Mating Post Length :
- 7.7mm
- Mounting Type :
- Through Hole
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Type :
- Male Pin
- Connector Type :
- Header
- Current Rating :
- 7.5A
- PCB Thickness :
- 1.6002mm
- Applications :
- General Purpose, Industrial, Lighting
- Insulation Height :
- 0.118 3.00mm
- Number of Positions Loaded :
- All
- Lead Free :
- Lead Free
- Shrouding :
- Shrouded - 1 Wall
- Plating Thickness :
- 800 nm
- Contact Length - Post :
- 0.146 3.70mm
- Voltage - Rated :
- 250VAC
- Pitch :
- 3.9624mm
- Insulation Color :
- Yellow
- Packaging :
- Bulk
- Min Operating Temperature :
- -25°C
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -25°C~105°C
- Max Operating Temperature :
- 105°C
- Contact Finish - Post :
- Tin
- Factory Lead Time :
- 20 Weeks
- Orientation :
- Vertical
- Number of Contacts :
- 7
- Contact Finish Thickness - Mating :
- 800 nm
- Series :
- Economy Power
- Current Rating (Amps) :
- 7.5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- Tin
- Mount :
- Through Hole
- Radiation Hardening :
- No
- Housing Material :
- PBT
- Datasheets
- 2-1123723-7
Economy Power Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 7-Position Board to Cable/Wire 0.118 3.00mm Height
2-1123723-7 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Economy Power Series.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -25°C is required for this device.The device could be used for the following application: General Purpose, Industrial, Lighting.Part Through Hole is mounted to the part.250V is the operating supply voltage for this memory.As a result, the device runs at -25°C~105°C Operating Temperature.
2-1123723-7 Features
Economy Power series
2-1123723-7 Applications
There are a lot of TE Connectivity AMP Connectors
2-1123723-7 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
