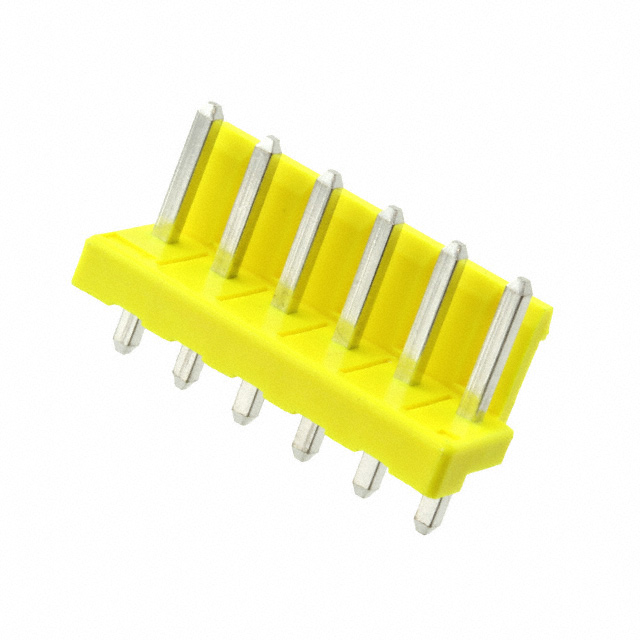

2-1123723-6
Or copy the link below:
- Mfr.Part #
- 2-1123723-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 3.96MM
- Stock
- 3,948
- In Stock ：
- 3,948
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mount :
- Through Hole
- Operating Supply Voltage :
- 250V
- PCB Thickness :
- 1.6002mm
- Material Flammability Rating :
- UL94 V-0
- Contact Plating :
- Tin
- Pitch - Mating :
- 0.156 3.96mm
- Insulation Height :
- 0.118 3.00mm
- Mating Post Length :
- 7.7mm
- Style :
- Board to Cable/Wire
- Contact Current Rating :
- 7.5A
- Fastening Type :
- Friction Lock
- Contact Style :
- Straight
- Lead Free :
- Lead Free
- ELV :
- Compliant
- Number of Positions :
- 6
- Housing Material :
- PBT
- Contact Length - Post :
- 0.146 3.70mm
- Radiation Hardening :
- No
- Contact Shape :
- Square
- Insulation Color :
- Yellow
- Plating Thickness :
- 800 nm
- Plating :
- Tin
- Applications :
- General Purpose, Industrial, Lighting
- Contact Type :
- Male Pin
- Contact Length - Mating :
- 0.303 7.70mm
- Min Operating Temperature :
- -25°C
- Pitch :
- 3.9624mm
- Factory Lead Time :
- 20 Weeks
- Height :
- 8.2mm
- Number of Contacts :
- 6
- Published :
- 2005
- Width :
- 10.7mm
- Voltage - Rated :
- 250VAC
- Packaging :
- Bulk
- PCB Mount Retention :
- Without
- Overall Contact Length :
- 0.567 14.40mm
- Housing Color :
- Yellow
- Series :
- Economy Power
- PCB Mount Alignment :
- Without
- Contact Finish - Mating :
- Tin
- Contact Finish - Post :
- Tin
- Length :
- 23.70074mm
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Mating :
- 800 nm
- Connector Type :
- Header
- Length - Tail :
- 3.7mm
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Material :
- Nylon
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Mating Retention :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Orientation :
- Vertical
- Shrouding :
- Shrouded - 1 Wall
- Operating Temperature :
- -25°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Yellow
- Termination :
- Solder
- Max Operating Temperature :
- 105°C
- PCB Mounting Orientation :
- Vertical
- Number of Rows :
- 1
- Current Rating :
- 7.5A
- Contact Material :
- Brass
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- 7.5A
- Sealable :
- No
- Datasheets
- 2-1123723-6
Economy Power Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 6-Position Board to Cable/Wire 0.118 3.00mm Height
2-1123723-6 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Economy Power Series of products.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -25°C at all times.It is possible for the device to be used for the application General Purpose, Industrial, Lighting.Through Hole mounts the part.A voltage of 250V is required to operate this memory.There is no operating temperature for the device.
2-1123723-6 Features
Economy Power series
2-1123723-6 Applications
There are a lot of TE Connectivity AMP Connectors
2-1123723-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
