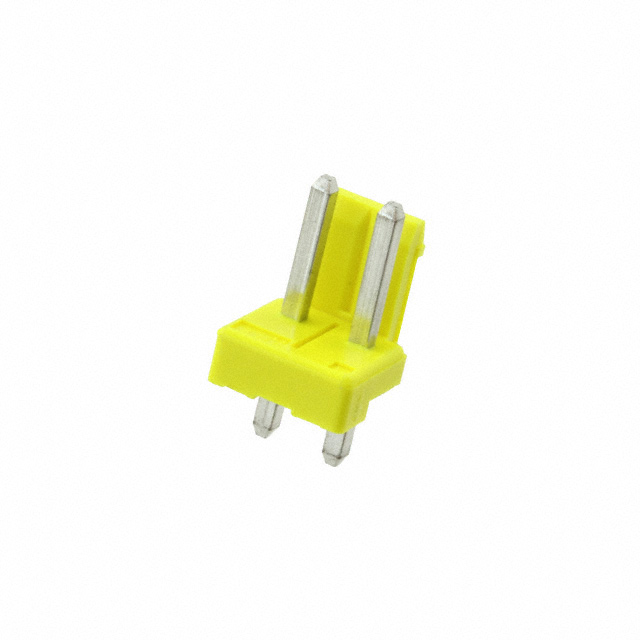

2-1123723-2
Or copy the link below:
- Mfr.Part #
- 2-1123723-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 3.96MM
- Stock
- 8,225
- In Stock ：
- 8,225
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.156 3.96mm
- Height :
- 8.128mm
- Termination :
- Solder
- Width :
- 10.7mm
- Min Operating Temperature :
- -25°C
- Packaging :
- Bulk
- Contact Length - Mating :
- 0.303 7.70mm
- PCB Thickness :
- 63μm
- Insulation Height :
- 0.118 3.00mm
- Contact Finish - Post :
- Tin
- Number of Power Positions :
- 2
- PCB Mounting Orientation :
- Vertical
- Insulation Color :
- Yellow
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Orientation :
- Vertical
- Pitch :
- 3.9624mm
- Contact Retention :
- Without
- Length :
- 7.86mm
- Current Rating (Amps) :
- 7.5A
- Plating :
- Tin
- Housing Color :
- Yellow
- Contact Material :
- Brass
- Voltage - Rated :
- 250VAC
- Housing Material :
- PBT
- Factory Lead Time :
- 13 Weeks
- Contact Current Rating :
- 8A
- Contact Plating :
- Tin
- Operating Temperature :
- -25°C~105°C
- Overall Contact Length :
- 0.567 14.40mm
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole
- Plating Thickness :
- 800 nm
- Style :
- Board to Cable/Wire
- Circuit Application :
- Power
- Contact Finish - Mating :
- Tin
- Mount :
- Through Hole
- Sealable :
- No
- Current Rating :
- 8A
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Operating Supply Voltage :
- 250V
- RoHS Status :
- RoHS Compliant
- Published :
- 2005
- Material :
- Nylon
- Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Applications :
- General Purpose, Industrial, Lighting
- Color :
- Yellow
- Number of Positions :
- 2
- Contact Shape :
- Square
- Fastening Type :
- Friction Lock
- Contact Length - Post :
- 0.146 3.70mm
- Connector Type :
- Header
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 1 Wall
- Max Operating Temperature :
- 105°C
- Mating Post Length :
- 7.62mm
- Radiation Hardening :
- No
- Series :
- Economy Power
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Number of Contacts :
- 2
- Datasheets
- 2-1123723-2
Economy Power Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 2-Position Board to Cable/Wire 0.118 3.00mm Height
2-1123723-2 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Economy Power Series.Use it when the temperature is below 105°C.Temperatures below -25°C are required for this device to operate.The device may be used for the following applications: General Purpose, Industrial, Lighting.It is mounted by Through Hole.Its operating supply voltage is 250V.It operates at an operating temperature of -25°C~105°C.
2-1123723-2 Features
Economy Power series
2-1123723-2 Applications
There are a lot of TE Connectivity AMP Connectors
2-1123723-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
