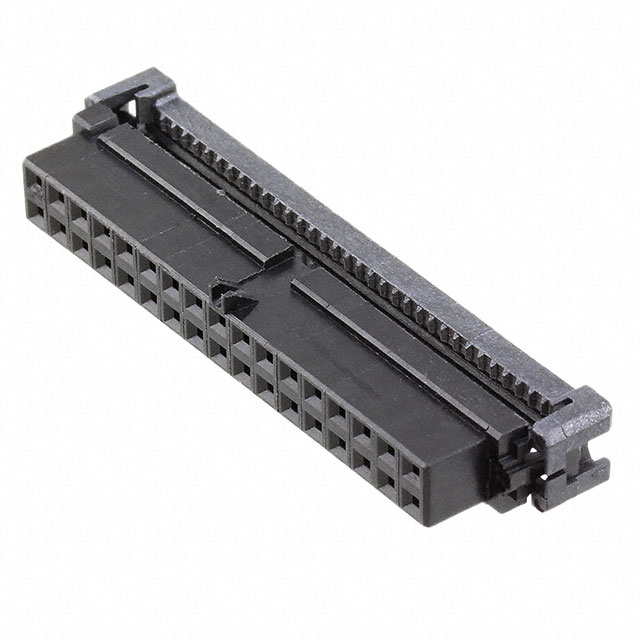

2-111623-8
Or copy the link below:
- Mfr.Part #
- 2-111623-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 34POS IDC 28AWG GOLD
- Stock
- 140
- In Stock ：
- 140
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Option :
- GENERAL PURPOSE
- HTS Code :
- 8536.69.40.40
- Wire/Cable Gauge :
- 28 AWG
- ELV :
- Compliant
- Circuit Application :
- Signal
- Published :
- 2008
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Rated Current (Signal) :
- 0.5A
- Wire/Cable Type :
- Ribbon
- Max Operating Temperature :
- 105°C
- Height :
- 8.48106mm
- Orientation :
- RIGHT ANGLE
- Total Number of Contacts :
- 34
- Contact Plating :
- Lead, Tin
- UL Flammability Code :
- 94V-0
- Polarization Key :
- POLARIZED HOUSING
- Pbfree Code :
- yes
- Filter Feature :
- No
- Withdrawl Force-Min :
- 1.668 N
- Number of Positions :
- 34
- Mating Connector Lock :
- With
- Plating Thickness :
- 760 nm
- Radiation Hardening :
- No
- Contact Current Rating :
- 500mA
- Pitch :
- 0.079 2.00mm
- Max Voltage Rating (AC) :
- 125V
- Insertion Force-Max :
- .139 N
- ECCN Code :
- EAR99
- Mounting Type :
- Free Hanging (In-Line)
- Contact Resistance :
- 25mOhm
- Factory Lead Time :
- 9 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Operating Supply Voltage :
- 125V
- Feature :
- Feed Through, Polarizing Key
- DIN Conformance :
- No
- Housing Material :
- Polyester
- Wire Type :
- Ribbon Cable
- Number of Rows :
- 2
- Reliability :
- COMMERCIAL
- RoHS Status :
- RoHS Compliant
- Insulation Diameter :
- 870 µm
- Contact Design :
- PREASSEM CONN
- Packaging :
- Bulk
- Insulation Resistance :
- 5GOhm
- Contact Material :
- Bronze
- Connector Type :
- Receptacle
- Depth :
- 5.16mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Finish :
- Gold
- Width :
- 5.58038mm
- Series :
- AMP-Latch
- JESD-609 Code :
- e4
- Mixed Contacts :
- No
- Cable Termination :
- IDC
- Contact Type :
- Female Socket
- Mount :
- Free Hanging
- Min Operating Temperature :
- -65°C
- Wire Gauge :
- 28 AWG
- Termination Type :
- IDC
- Row Spacing :
- 0.079 (2.00mm)
- Length :
- 39.16934mm
- Approval Agency :
- UL
- MIL Conformance :
- No
- Current Rating :
- 500mA
- Durability :
- 150 Cycles
- Color :
- Black
- Flammability Rating :
- UL94 V-0
- Datasheets
- 2-111623-8
2-111623-8 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
