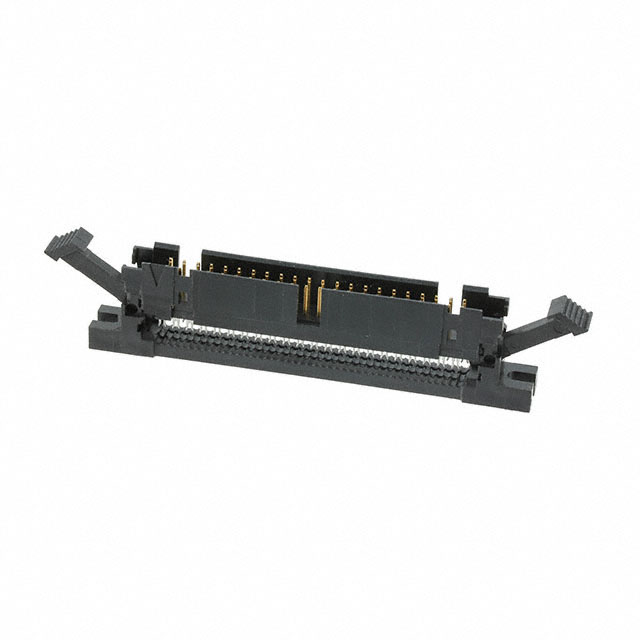

2-111506-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Free Hanging, Panel Mount

Option :

GENERAL PURPOSE

Polarization Key :

POLARIZED HOUSING

Total Number of Contacts :

44

PCB Mount Retention :

Without

Mixed Contacts :

No

Number of Positions :

44

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Termination Type :

IDC

Lead Length :

3.302mm

Pitch :

0.100 2.54mm

Fastening Type :

Latch Lock/Eject Hooks

Width :

8.38mm

Contact Material :

Bronze

Connector Type :

PLUG

MIL Conformance :

No

Wire Gauge (Min) :

26 AWG

Body Breadth :

0.33 inch

Row Spacing :

0.100 (2.54mm)

HTS Code :

8536.69.40.40

DIN Conformance :

No

Contact Finish :

Gold

Reliability :

COMMERCIAL

Mating Connector Lock :

With

Operating Supply Voltage :

250V

Body Depth :

0.754 inch

Shrouded End Dimension :

3.81 mm

Current Rating :

1A

Radiation Hardening :

No

Withdrawl Force-Min :

.417 N

Approval Agency :

UL

Factory Lead Time :

25 Weeks

Length :

80.6704mm

Mount :

Panel

Contact Current Rating :

1A

Circuit Application :

Signal

Color :

Black

ELV :

Compliant

Insulation Resistance :

5GOhm

Mating Post Length :

6.1mm

IEC Conformance :

No

Contact Finish Thickness :

30.0μin 0.76μm

Pbfree Code :

yes

Cable Termination :

IDC

Insertion Force-Max :

3.336 N

ECCN Code :

EAR99

Filter Feature :

No

Wire Gauge :

26-28 AWG

Rated Current (Signal) :

1A

Contact Type :

Male Pin

Wire/Cable Type :

Ribbon

RoHS Status :

RoHS Compliant

Height :

27.81046mm

Wire Type :

Ribbon Cable

Plating Thickness :

760 nm

Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Max Operating Temperature :

105°C

Insulation Diameter :

970 μm

Series :

AMP-Latch

Contact Plating :

Tin

Min Operating Temperature :

-65°C

Housing Material :

Thermoplastic

Wire Gauge (Max) :

28 AWG

Dielectric Withstanding Voltage :

500VAC V

Packaging :

Tray

Feature :

Feed Through, Strain Relief

Durability :

100 Cycles

Published :

1999

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Panel Mount

Number of Rows :

2
