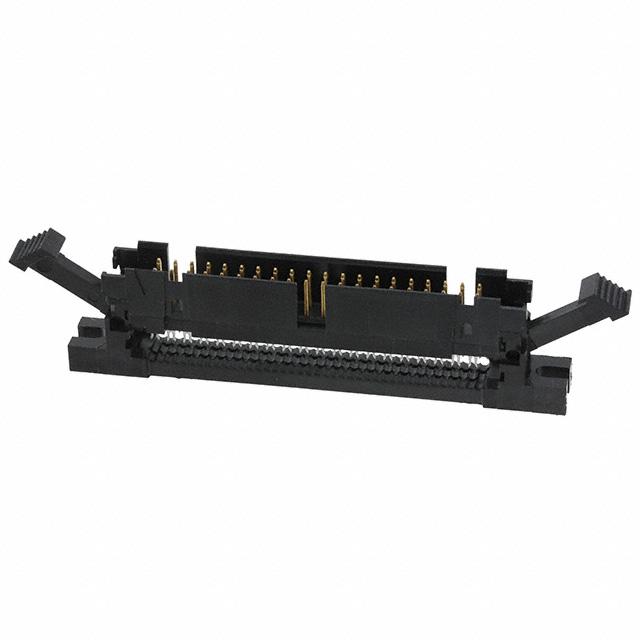

2-111506-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Free Hanging, Panel Mount

Insertion Force-Max :

3.336 N

Withdrawl Force-Min :

.417 N

Depth :

27.81mm

Housing Material :

Thermoplastic

Insulation Resistance :

5GOhm

Contact Type :

Male Pin

Factory Lead Time :

9 Weeks

Rated Current (Signal) :

1A

Reliability :

COMMERCIAL

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire/Cable Type :

Ribbon

Connector Type :

PLUG

Termination Type :

IDC

REACH SVHC :

Unknown

Length :

75.59mm

Contact Finish :

Gold

Contact Resistance :

15mOhm

Shrouded End Dimension :

3.81 mm

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Panel Mount

PCB Mount Retention :

Without

Packaging :

Tray

Mating Connector Lock :

With

Contact Current Rating :

1A

Filter Feature :

No

Dielectric Withstanding Voltage :

500VAC V

Mating Post Length :

6.1mm

Wire Gauge :

26-28 AWG

Mixed Contacts :

No

Approval Agency :

UL

Durability :

100 Cycles

Width :

8.38mm

Fastening Type :

Latch Lock/Eject Hooks

Radiation Hardening :

No

Contact Material :

Bronze

Current Rating :

1A

Body Breadth :

0.33 inch

Height :

27.81046mm

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

RoHS Status :

RoHS Compliant

Wire Gauge (Max) :

28 AWG

Operating Supply Voltage :

250V

Pbfree Code :

yes

Number of Rows :

2

Published :

1999

Pitch :

0.100 2.54mm

Orientation :

RIGHT ANGLE

Wire Type :

Ribbon Cable

Mount :

Panel

Contact Finish Thickness :

30.0μin 0.76μm

Min Operating Temperature :

-65°C

Wire Gauge (Min) :

26 AWG

Flammability Rating :

UL94 V-0

Plating Thickness :

760 nm

Contact Plating :

Gold, Tin

Cable Termination :

IDC

Option :

GENERAL PURPOSE

Circuit Application :

Signal

ELV :

Compliant

Row Spacing :

0.100 (2.54mm)

Feature :

Feed Through, Strain Relief

Color :

Black

Gender :

Male

ECCN Code :

EAR99

IEC Conformance :

No

Max Operating Temperature :

105°C

Lead Length :

3.302mm

Lead Pitch :

2.54mm

Series :

AMP-Latch

UL Flammability Code :

94V-0

Number of Positions :

40

DIN Conformance :

No

Total Number of Contacts :

40

Insulation Diameter :

970 μm
