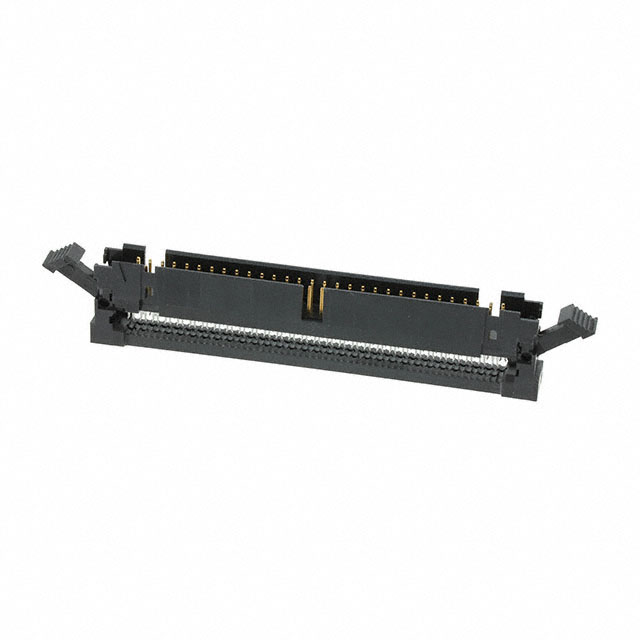

2-111492-6
Or copy the link below:
- Mfr.Part #
- 2-111492-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 60P IDC 26-28AWG GOLD
- Stock
- 173
- In Stock ：
- 173
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Fastening Type :
- Latch Lock/Eject Hooks
- MIL Conformance :
- No
- Factory Lead Time :
- 9 Weeks
- Insulation Resistance :
- 5GOhm
- Wire Gauge :
- 26-28 AWG
- Mixed Contacts :
- No
- ELV :
- Compliant
- Operating Supply Voltage :
- 250V
- Approval Agency :
- UL
- Cable Termination :
- IDC
- Width :
- 8.38mm
- Color :
- Black
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Mating Post Length :
- 6.1mm
- Plating Thickness :
- 760 nm
- Connector Type :
- PLUG
- Termination :
- Solder
- Max Operating Temperature :
- 105°C
- Series :
- AMP-Latch
- Wire Gauge (Min) :
- 26 AWG
- Published :
- 1999
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Height :
- 23.749mm
- IEC Conformance :
- No
- Empty Shell :
- No
- Option :
- GENERAL PURPOSE
- Min Operating Temperature :
- -65°C
- Filter Feature :
- No
- Packaging :
- Tray
- Pitch :
- 0.100 2.54mm
- Pbfree Code :
- yes
- Contact Material :
- Bronze
- Contact Current Rating :
- 1A
- Mounting Type :
- Free Hanging (In-Line)
- Wire/Cable Type :
- Ribbon
- UL Flammability Code :
- 94V-0
- Number of Positions :
- 60
- Number of Rows :
- 2
- Contact Type :
- Male Pin
- Mating Connector Lock :
- Without
- Shell Material :
- POLYETHYLENE
- Orientation :
- Vertical
- Row Spacing :
- 0.100 (2.54mm)
- DIN Conformance :
- No
- Length :
- 89.59mm
- Contact Finish :
- Gold
- Flammability Rating :
- UL94 V-0
- Insulation Diameter :
- 970 μm
- Feature :
- Feed Through, Polarizing Key
- Lead Length :
- 3.302mm
- Circuit Application :
- Signal
- Housing Material :
- Thermoplastic
- Wire Gauge (Max) :
- 28 AWG
- Current Rating :
- 1A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouded End Dimension :
- 3.81 mm
- RoHS Status :
- RoHS Compliant
- Wire Type :
- Ribbon Cable
- Total Number of Contacts :
- 60
- Mount :
- Free Hanging
- Datasheets
- 2-111492-6
