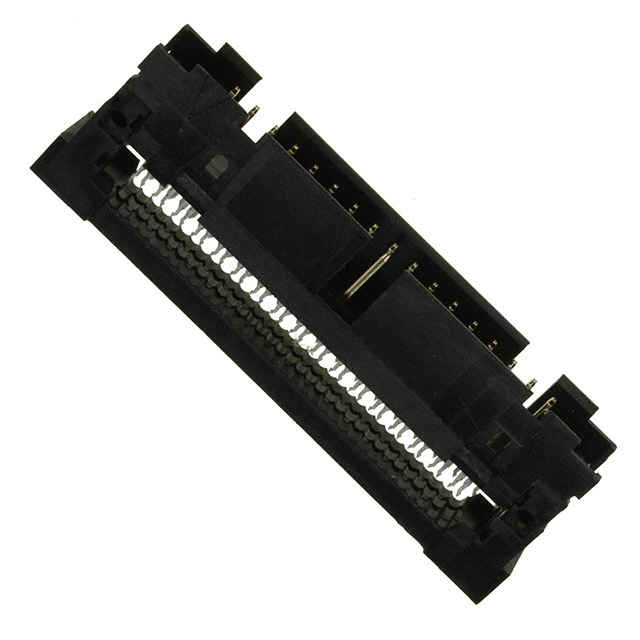

2-111446-2
Or copy the link below:
- Mfr.Part #
- 2-111446-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 34P IDC 26-28AWG GOLD
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Contact Resistance :
- 15mOhm
- RoHS Status :
- RoHS Compliant
- Plating Thickness :
- 760 nm
- Insulation Resistance :
- 5GOhm
- Orientation :
- Vertical
- ELV :
- Compliant
- Height :
- 14.48mm
- Mating Post Length :
- 6.1mm
- Shrouded End Dimension :
- 3.81 mm
- Wire Gauge :
- 26-28 AWG
- Length :
- 57.71mm
- Contact Current Rating :
- 1A
- Current Rating :
- 1A
- Width :
- 8.37946mm
- Factory Lead Time :
- 9 Weeks
- Connector Type :
- PLUG
- Number of Positions :
- 34
- Contact Plating :
- Tin
- Contact Finish :
- Gold
- Series :
- AMP-Latch
- Number of Rows :
- 2
- Approval Agency :
- UL
- ECCN Code :
- EAR99
- Contact Material :
- Bronze
- Pitch :
- 0.100 2.54mm
- Mating Connector Lock :
- Without
- Color :
- Black
- Mounting Type :
- Free Hanging (In-Line)
- REACH SVHC :
- Unknown
- Feature :
- Feed Through
- Contact Gender :
- Male
- Wire/Cable Type :
- Ribbon
- Mount :
- Cable, Free Hanging
- Housing Material :
- Thermoplastic
- Insulation Diameter :
- 970 μm
- Cable Termination :
- IDC
- Contact Type :
- Male Pin
- Packaging :
- Tray
- Wire Type :
- Ribbon Cable
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Max Operating Temperature :
- 105°C
- Operating Supply Voltage :
- 250V
- Row Spacing :
- 0.100 (2.54mm)
- Published :
- 1997
- HTS Code :
- 8536.69.40.30
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Radiation Hardening :
- No
- Min Operating Temperature :
- -65°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Min) :
- 26 AWG
- Flammability Rating :
- UL94 V-0
- Lead Pitch :
- 2.54mm
- Wire Gauge (Max) :
- 28 AWG
- Termination :
- IDT, Solder
- Depth :
- 8.38mm
- Circuit Application :
- Signal
- Lead Free :
- Lead Free
- Datasheets
- 2-111446-2
2-111446-2 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
