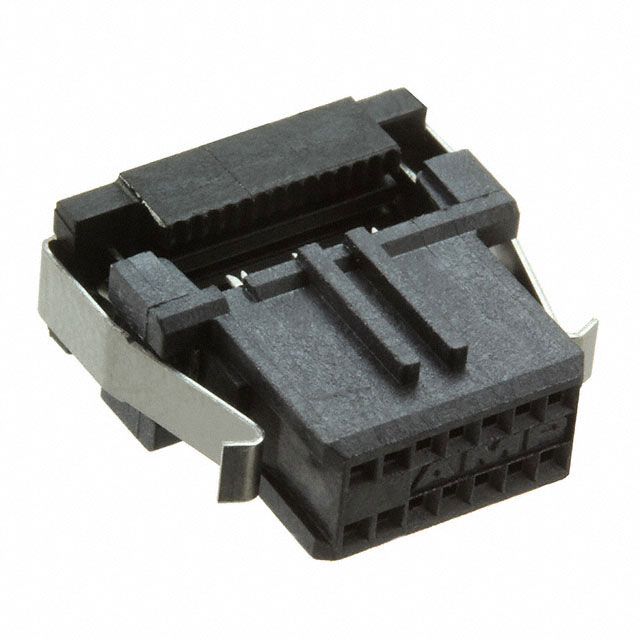

2-111196-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Free Hanging, Panel Mount

Packaging :

Bulk

Rated Current (Signal) :

0.5A

Wire/Cable Type :

Ribbon

Wire Gauge (Min) :

30 AWG

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Sealable :

No

Contact Type :

Female Socket

Housing Material :

Thermoplastic

JESD-609 Code :

e3

Reliability :

COMMERCIAL

Insulation Resistance :

5GOhm

Series :

AMPMODU System 50

Contact Current Rating :

500mA

Contact Gender :

FEMALE

ELV :

Compliant

Contact Material :

Phosphor Bronze

Mixed Contacts :

No

Contact Finish :

Gold

MIL Conformance :

No

Contact Finish Thickness :

30.0μin 0.76μm

Mating Connector Lock :

With

Color :

Black

UL Flammability Code :

94V-0

IEC Conformance :

No

Reference Standard :

UL

Filter Feature :

No

Wire Gauge :

30-32 AWG

HTS Code :

8536.69.40.40

Number of Rows :

2

Published :

2005

Mounting Type :

Free Hanging (In-Line)

Max Voltage Rating (AC) :

30V

Pbfree Code :

yes

Max Operating Temperature :

105°C

Depth :

6.45mm

Feature :

Feed Through

Shape :

RECTANGULAR

Termination :

IDT

Height :

12.319mm

Cable Termination :

IDC

Flammability Rating :

UL94 V-0

Plating Thickness :

5.08μm

Total Number of Contacts :

14

Option :

GENERAL PURPOSE

Min Operating Temperature :

-65°C

Voltage - Rated :

30V

Mount :

Cable, Free Hanging

Wire Type :

Ribbon Cable

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Length :

15.494mm

Current Rating :

500mA

Contact Plating :

Gold, Tin

Fastening Type :

Latch Lock

DIN Conformance :

No

Connector Type :

Receptacle

Pitch :

0.050 1.27mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing :

0.100 (2.54mm)

Contact Resistance :

30mOhm

Wire Gauge (Max) :

32 AWG

RoHS Status :

RoHS Compliant

Orientation :

RIGHT ANGLE

Circuit Application :

Signal

Additional Feature :

AMP-Latch

Operating Supply Voltage :

30V

Number of Positions :

14

Width :

6.45mm

Factory Lead Time :

9 Weeks

ECCN Code :

EAR99
