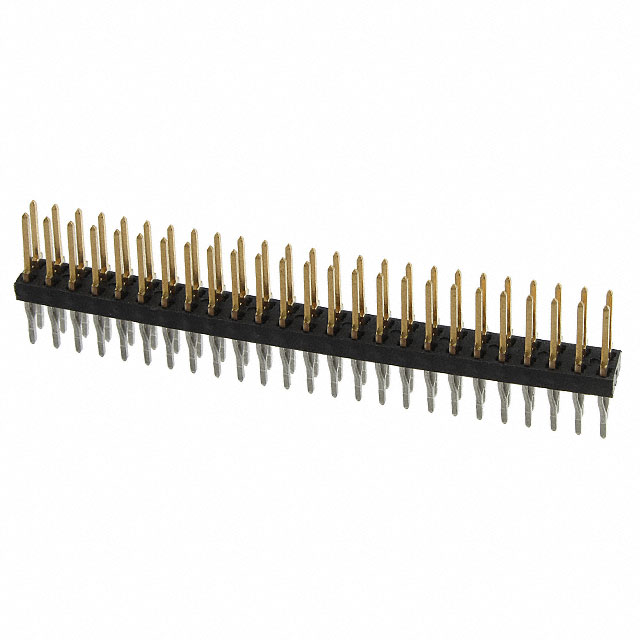

2-103542-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Reliability :

COMMERCIAL

MIL Conformance :

No

Material Flammability Rating :

UL94 V-0

Plating Thickness :

30μin

Flammability Rating :

UL94 V-0

Mount :

Through Hole

Mounting Type :

Through Hole

Operating Temperature :

-55°C~125°C

UL Flammability Code :

94V-0

IEC Conformance :

No

Fastening Type :

Push-Pull

Approval Agency :

UL

Mating Contact Pitch :

0.1 inch

Contact Type :

Male Pin

ELV :

Non-Compliant

Mixed Contacts :

No

PCB Thickness :

1.5748mm

Overall Contact Length :

0.660 16.76mm

HTS Code :

8536.69.40.40

Insulation Material :

Thermoplastic

Contact Finish - Mating :

Gold

Factory Lead Time :

20 Weeks

Number Of PCB Rows :

2

Orientation :

Vertical

Number of Positions :

50

Contact Gender :

Male

Contact Length - Post :

0.250 6.35mm

Series :

AMPMODU Mod II

Option :

GENERAL PURPOSE

Length :

63.09mm

Contact Material :

COPPER ALLOY

Housing Color :

Black

Connector Type :

Header

Lead Length :

6.35mm

Pitch - Mating :

0.100 2.54mm

Current Rating (Amps) :

3A

Published :

2009

Style :

Board to Board or Cable

Number of Conductors :

ONE

Contact Finish - Post :

Tin-Lead

Number of Positions Loaded :

All

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Length - Mating :

0.320 8.13mm

Filter Feature :

No

Shrouding :

Unshrouded

High Temperature Housing :

yes

Packaging :

Bulk

Row Spacing - Mating :

0.100 (2.54mm)

DIN Conformance :

No

Contact Finish Thickness - Post :

100.0μin 2.54μm

Depth :

4.87mm

Contact Shape :

Square

ECCN Code :

EAR99

Pbfree Code :

yes

Mating Post Length :

8.128mm

Number of Rows :

2

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

High Speed Serial Data Connector :

No

Insulation Height :

0.090 2.29mm

Termination :

Press-Fit, Solder

RoHS Status :

Non-RoHS Compliant
