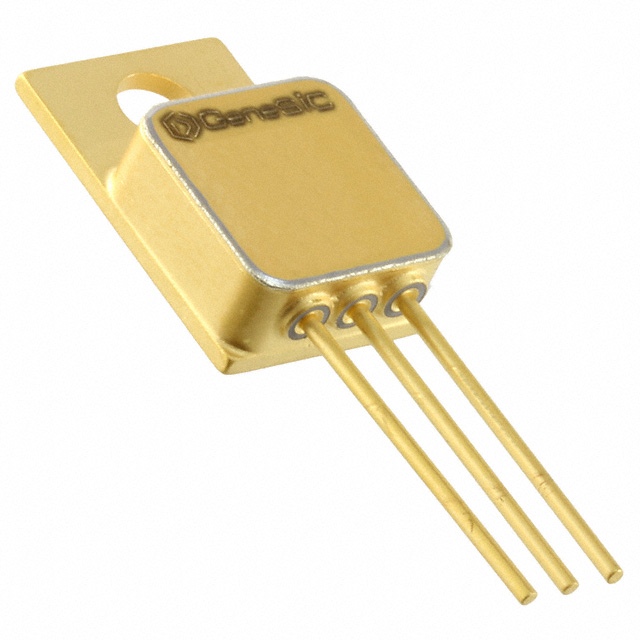

1N8024-GA
Or copy the link below:
- Mfr.Part #
- 1N8024-GA
- Manufacturer
- GeneSiC Semiconductor
- Package / Case
- TO-257-3
- Datasheet
- Download
- Description
- DIODE SCHOTTKY 1.2KV 750MA TO257
- Stock
- 37,690
- In Stock ：
- 37,690
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- GeneSiC Semiconductor
- Product Category :
- Diodes - Rectifiers - Single
- Max Repetitive Reverse Voltage (Vrrm) :
- 1.2kV
- Forward Current :
- 750mA
- Published :
- 2014
- RoHS Status :
- Non-RoHS Compliant
- Max Forward Surge Current (Ifsm) :
- 8A
- Voltage - Forward (Vf) (Max) @ If :
- 1.74V @ 750mA
- Max Reverse Voltage (DC) :
- 1.2kV
- Speed :
- No Recovery Time > 500mA (Io)
- Current - Reverse Leakage @ Vr :
- 10μA @ 1200V
- Number of Pins :
- 3
- Current - Average Rectified (Io) :
- 750mA
- Base Part Number :
- 1N8024
- Factory Lead Time :
- 24 Weeks
- Natural Thermal Resistance :
- 9.52 °C/W
- Capacitance @ Vr, F :
- 66pF @ 1V 1MHz
- Forward Voltage :
- 1.7V
- Packaging :
- Tube
- Lead Free :
- Contains Lead
- Operating Temperature - Junction :
- -55°C~250°C
- Package / Case :
- TO-257-3
- Supplier Device Package :
- TO-257
- Mount :
- Through Hole
- Diode Type :
- Silicon Carbide Schottky
- Reverse Recovery Time :
- 0 s
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Average Rectified Current :
- 750mA
- Voltage - DC Reverse (Vr) (Max) :
- 1200V
- Mounting Type :
- Through Hole
- Datasheets
- 1N8024-GA
Silicon Carbide Schottky Diode Rectifier No Recovery Time > 500mA (Io) 1.74V @ 750mA -55°C~250°C 10μA @ 1200V Tube TO-257-3 Through Hole
1N8024-GA Overview
This device has an average rectified current of 750mA volts.Forward current is allowed to reach a value of zero.An object's thermal resistance is a measure of its ability to resist a heat flow, and its natural thermal resistance is 9.52 °C/W °C.
1N8024-GA Features
an average rectified current of 750mA volts
1N8024-GA Applications
There are a lot of GeneSiC Semiconductor
1N8024-GA applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
