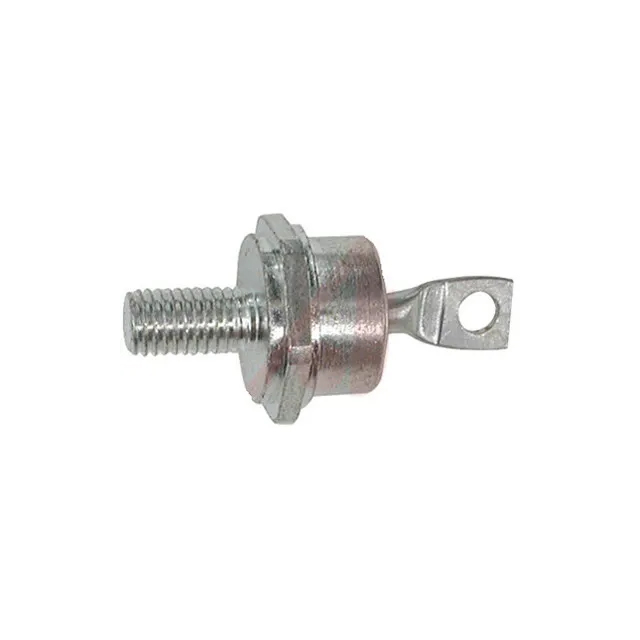

1N3324B

Manufacturer :

Solid State Inc.

Product Category :

Diodes - Zener - Single

Impedance :

3Ohm

Packaging :

Bulk

Additional Feature :

HIGH RELIABILITY, LOW IMPEDANCE

Published :

1999

Lifecycle Status :

IN PRODUCTION (Last Updated: 1 month ago)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Diode Type :

ZENER DIODE

Radiation Hardening :

yes

Current - Reverse Leakage @ Vr :

10μA @ 22.8V

JESD-609 Code :

e0

Voltage Tolerance :

5%

HTS Code :

8541.10.00.50

Qualification Status :

Not Qualified

Terminal Form :

Solder Lug

Operating Temperature :

-65°C~175°C

ECCN Code :

EAR99

Mount :

Chassis, Stud

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pin Count :

1

Impedance-Max :

3Ohm

RoHS Status :

Non-RoHS Compliant

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Case Connection :

ANODE

Element Configuration :

Single

Test Current :

420mA

Factory Lead Time :

30 Weeks

Voltage Tol-Max :

5%

Tolerance :

±5%

Power Dissipation :

50W

Pbfree Code :

No

Diode Element Material :

SILICON

Polarity :

Unidirectional

Reference Voltage :

30V

Terminal Position :

UPPER

Mounting Type :

Chassis, Stud Mount

Terminal Finish :

TIN LEAD

Base Part Number :

1N3324

Zener Voltage :

30V

Package / Case :

DO-203AB, DO-5, Stud

Number of Elements :

1

JESD-30 Code :

O-MUPM-D1

Max Reverse Leakage Current :

10μA

Max Power Dissipation :

50W

Number of Pins :

2

Voltage - Forward (Vf) (Max) @ If :

1.5V @ 10A

Number of Terminations :

1
