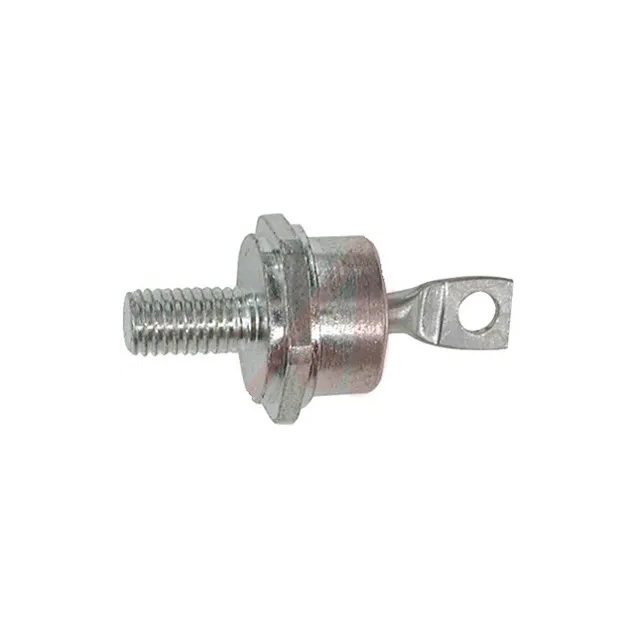

1N3317B

Manufacturer :

Solid State Inc.

Product Category :

Diodes - Zener - Single

Number of Elements :

1

Voltage Temp Coeff-Max :

13.5mV/°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Tolerance :

±5%

ECCN Code :

EAR99

Impedance :

2Ohm

Reach Compliance Code :

Unknown

Additional Feature :

High Reliability

Package / Case :

DO-203AB, DO-5, Stud

Diode Type :

ZENER DIODE

Operating Temperature :

-65°C~175°C

Radiation Hardening :

yes

Reference Voltage :

18V

Voltage Tol-Max :

5%

Pbfree Code :

No

Diode Element Material :

SILICON

JESD-30 Code :

O-MUPM-D1

Lifecycle Status :

IN PRODUCTION (Last Updated: 1 month ago)

Pin Count :

1

Voltage - Forward (Vf) (Max) @ If :

1.5V @ 10A

Factory Lead Time :

30 Weeks

Case Connection :

ANODE

Current - Reverse Leakage @ Vr :

10μA @ 13.7V

Number of Terminations :

1

Qualification Status :

Not Qualified

Terminal Form :

Solder Lug

Element Configuration :

Single

RoHS Status :

Non-RoHS Compliant

Test Current :

700mA

Max Power Dissipation :

50W

Zener Voltage :

18V

Mounting Type :

Chassis, Stud Mount

Impedance-Max :

2Ohm

Published :

1999

Mount :

Chassis, Stud

Base Part Number :

1N3317

HTS Code :

8541.10.00.50

Voltage Tolerance :

5%

Power Dissipation :

50W

Polarity :

Unidirectional

Max Reverse Leakage Current :

10μA

Packaging :

Bulk

Number of Pins :

2

Terminal Position :

UPPER
