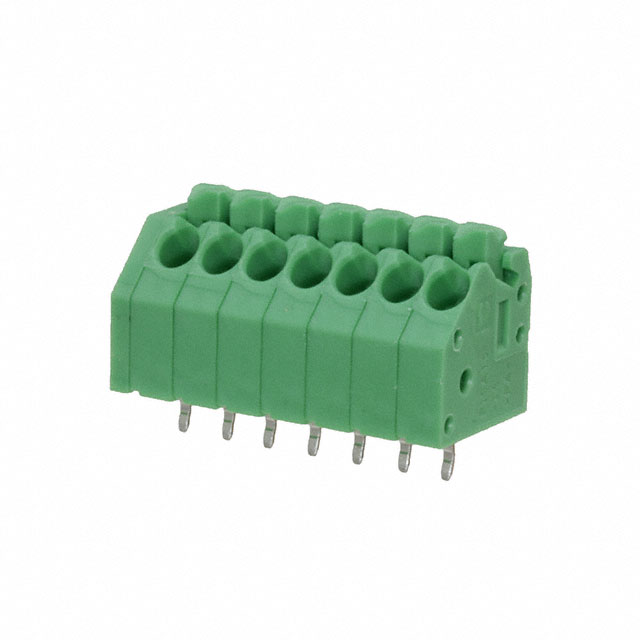

1985014

Share

Or copy the link below:

Mfr.Part #
1985014
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
TERM BLOCK 7POS 45DEG 3.5MM PCB
Stock
150
In Stock :
150

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Wire to Board
Number of Decks :
1
Series :
COMBICON PTSA
Factory Lead Time :
13 Weeks
Fastening Method :
SPRING LOADED
Number of Levels :
1
Mating Orientation :
45° (135°) Angle with Board
Wire/Cable Gauge :
16 AWG
Mounting Type :
Through Hole
Termination :
Screwless
Positions Per Level :
7
Safety Approval :
UL
Number of Ways :
7
Material :
Nylon
Housing Material :
Polyamide (PA), Nylon
Terminal and Terminal Block Type :
BARRIER STRIP TERMINAL BLOCK
Additional Feature :
PA, 94V-0
Number of Rows :
1
Approval Agency :
UL, VDE
Voltage - Rated :
200V
Wire Gauge :
16-24 AWG
Stripping Length :
8mm
Mount :
Through Hole
Wire Gauge (Max) :
24 AWG
Wire Termination :
Screwless - Spring Cage, Tension Clamp
Packaging :
Bulk
Voltage :
300V
RoHS Status :
RoHS Compliant
Weight :
3.38g
Pitch :
0.138 3.50mm
ECCN Code :
EAR99
Wire Gauge (Min) :
16 AWG
Current Rating :
2A
Pbfree Code :
yes
Published :
2005
HTS Code :
8536.69.40.40
Height :
13.1mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Positions :
7
Length :
12mm
Color :
Green
Datasheets
1985014
Introducing Wire to Board Phoenix Contact 1985014 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Voltage:300V, 1985014 pinout, 1985014 datasheet PDF, 1985014 amp .Beyond Wire to Board Phoenix Contact 1985014 ,we also offer 1985218, 1984989, 1706714, Our vast inventory has you covered. Contact us now for immediate solutions.

Phoenix Contact 1985014


0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-24 AWG COMBICON PTSA

1985014 Overview


This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON PTSA Series.To name a few, there is also PA, 94V-0.Part Through Hole is mounted to the part.

1985014 Features


COMBICON PTSA series


1985014 Applications


There are a lot of Phoenix Contact
1985014 Terminal Blocks applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
