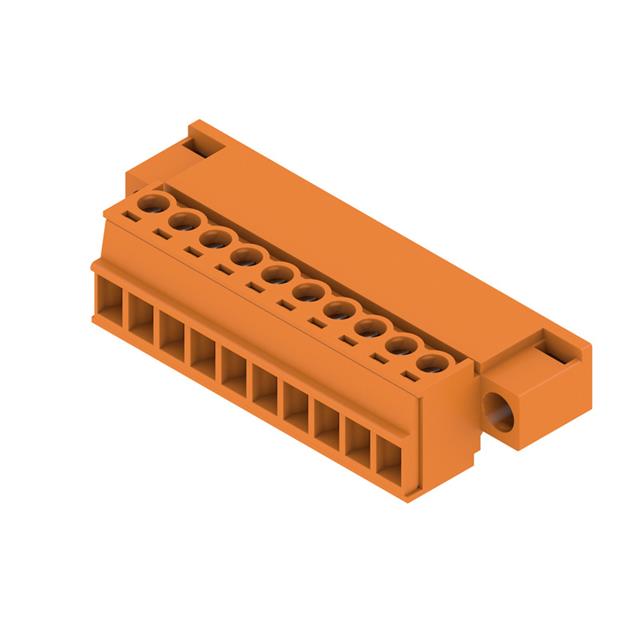

1971000000
Or copy the link below:
- Mfr.Part #
- 1971000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 10POS STR 3.81MM
- Stock
- 46,368
- In Stock ：
- 46,368
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Feature :
- Mating Flange
- Insulation Height :
- 0.437 11.10mm
- Approval Agency :
- CSA, cURus
- Stripping Length :
- 7mm
- Number of Ways :
- 10
- Current Rating :
- 17.1A
- Plug Wire Entry :
- 180°
- Voltage - IEC :
- 320V
- HTS Code :
- 8536.69.40.40
- Number of Decks :
- 1
- ECCN Code :
- EAR99
- Screw Size :
- M2
- Wire Gauge or Range - AWG :
- 16-28 AWG
- Ingress Protection :
- IP20
- Number of Rows :
- 1
- Current - IEC :
- 17.5A
- Wire Gauge or Range - mm² :
- 0.2-1.5mm2
- Color :
- Orange
- Flammability Rating :
- UL94 V-0
- Number of Levels :
- 1
- Factory Lead Time :
- 12 Weeks
- Material Flammability Rating :
- UL94 V-0
- Current - UL :
- 10A
- Mounting Type :
- Free Hanging (In-Line)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Strip Length :
- 7mm
- Torque - Screw :
- 0.2-0.25 Nm (1.7-2.2 Lb-In)
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Packaging :
- Bulk
- Number of Positions :
- 10
- Type :
- Plug, Male Pins
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 300V
- Insulation Material :
- Nylon
- Contact Mating Finish :
- Tin
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -50°C~120°C
- Termination Style :
- Screw - Clamping Yoke (Tension Sleeve)
- Pitch :
- 0.150 3.81mm
- Series :
- Omnimate SC
- Datasheets
- 1971000000
Bulk 0.150 3.81mm Orange 1 Levels Free Hanging (In-Line) Plug, Male Pins Omnimate SC Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1971000000 Overview
The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the Omnimate SC Series, it belongs to the range of products of that series.A number of features make the Mating Flange feature more powerful.-50°C~120°C Operating Temperature is the default operating temperature for the device.As with other Plug, Male Pins products, this part also offers a wide range of benefits.
1971000000 Features
Omnimate SC series
1971000000 Applications
There are a lot of Weidmüller
1971000000 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
