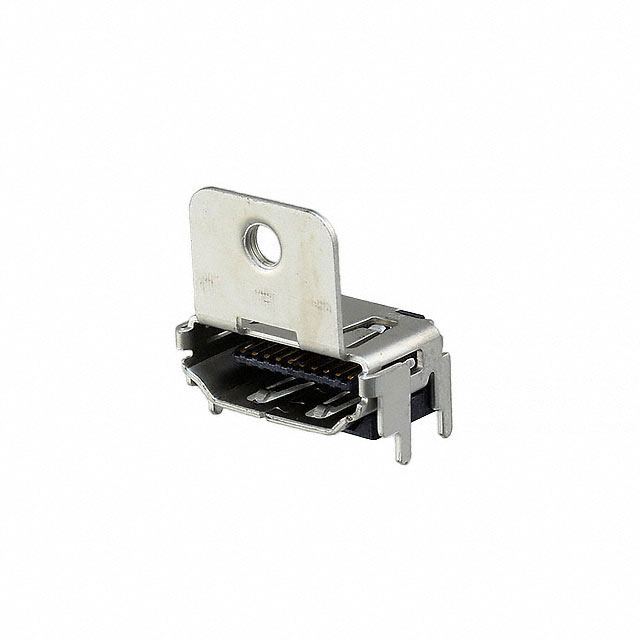

1903015-3
Or copy the link below:
- Mfr.Part #
- 1903015-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HDMI 19POS PNL MNT R/A
- Stock
- 316
- In Stock ：
- 316
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- USB, DVI, HDMI Connector Assemblies
- Shielding :
- Unshielded
- Mating Cycles :
- 10000
- Factory Lead Time :
- 10 Weeks
- Empty Shell :
- No
- Mounting Type :
- Panel Mount; Surface Mount, Right Angle; Through Hole
- Filter Feature :
- No
- Shell Finish :
- Tin
- Mounting Feature :
- Flange, Horizontal
- Number of Positions :
- 19
- Total Number of Contacts :
- 19
- Orientation :
- Straight
- Mixed Contacts :
- No
- Option :
- GENERAL PURPOSE
- Length :
- 16.2mm
- IEC Conformance :
- No
- Termination :
- Solder
- UL Flammability Code :
- 94V-0
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- 0.5A
- Depth :
- 9mm
- Shell/Shielding Material :
- Phosphor Bronze
- DIN Conformance :
- No
- MIL Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Bronze
- Operating Temperature :
- -25°C~70°C
- Housing Material :
- Polymer
- Pbfree Code :
- yes
- ELV :
- Compliant
- Pitch :
- 500μm
- Gender :
- Receptacle
- Published :
- 2005
- Voltage - Rated :
- 40VAC
- Connector Type :
- HDMI
- Insulation Color :
- Black
- Mount :
- Horizontal, Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Ports :
- 1
- Packaging :
- Tape and Reel (TR)
- Contact Finish :
- Gold
- Datasheets
- 1903015-3
