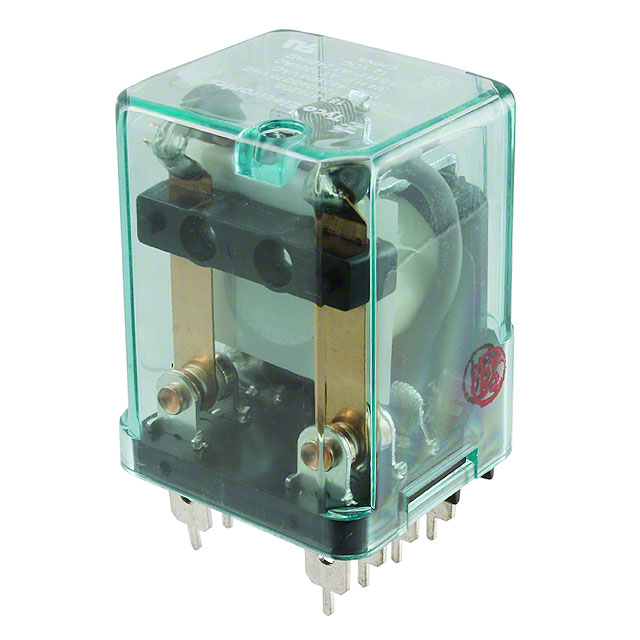

18782B200
Or copy the link below:
- Mfr.Part #
- 18782B200
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 20A 12V
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Seal Rating :
- -
- Pitch :
- 2.54mm Pitch
- Type :
- PGA Sockets Adapters
- Must Release Voltage :
- -
- Packaging :
- Tray
- Package :
- Tray
- Contact Material :
- Silver Cadmium Oxide
- Coil Type :
- Non Latching
- Turn Off Voltage (Min) :
- --
- Features :
- Insulation - Class B
- Switching Voltage :
- 240VAC, 28VDC - Max
- Moisture Sensitivity Level (MSL) :
- --
- Mounting :
- Through Hole
- Product Status :
- Active
- Contact Rating (Current) :
- 20A
- Must Operate Voltage :
- 9 VDC
- Operate Time :
- 20ms
- Turn On Voltage (Max) :
- 9 VDC
- Contact Form :
- DPDT (2 Form C)
- Relay Type :
- GENERAL PURPOSE
- Coil Voltage :
- 12VDC
- Product Type :
- PGA Sockets Adapters
- Series :
- 187
- Coil Resistance :
- 120 Ohms
- Termination Style :
- PC Pin
- Operating Temperature :
- -45 to 70 °C
- Base Product Number :
- 18782B200
- Coil Power :
- 1.2 W
- Coil Insulation :
- Class B
- Mounting Type :
- Through Hole
- Release Time :
- 10ms
- Product Style :
- IC Socket Adapters
- Coil Current :
- 100mA
- Datasheets
- 18782B200
18782B200 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity stock available at
