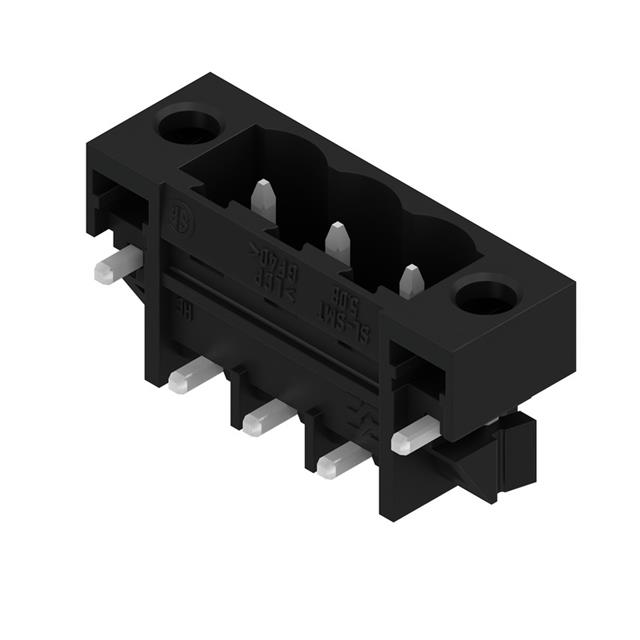

1877000000
Or copy the link below:
- Mfr.Part #
- 1877000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 3POS 90DEG 5.08MM
- Stock
- 25,052
- In Stock ：
- 25,052
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Insulation Height :
- 0.335 8.51mm
- Header Orientation :
- 90°, Right Angle, Under Board
- Contact Tail Length :
- 0.059 1.50mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Gender :
- Male
- Voltage - IEC :
- 400V
- Radiation Hardening :
- No
- Feature :
- Mating Flange, Solder Retention
- Series :
- Omnimate SL
- Factory Lead Time :
- 12 Weeks
- Number of Levels :
- 1
- Packaging :
- Tape and Reel (TR)
- Number of Poles :
- 3
- Voltage - UL :
- 300V
- Pitch :
- 0.200 5.08mm
- Approval Agency :
- CSA, UR
- Termination Style :
- Solder
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Contact Mating Finish :
- Tin
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Operating Temperature :
- -50°C~100°C
- Flammability Rating :
- UL94 V-0
- Color :
- Black
- Hole Diameter :
- 1.4 mm
- Current - IEC :
- 27.5A
- Mount :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Current Rating :
- 19A
- Contact Material :
- COPPER ALLOY
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 300V
- Current - UL :
- 18.5A
- Datasheets
- 1877000000
Tape & Reel (TR) 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Liquid Crystal Polymer (LCP), Glass Filled Tin Copper Alloy
1877000000 Overview
The mounting type of the device is Through Hole.A Tape & Reel (TR) case is used to package the product.A product of the Omnimate SL Series, it belongs to the range of products of that series.A number of features make the Mating Flange, Solder Retention feature more powerful.Through Hole represents the mounting point for the part.-50°C~100°C Operating Temperature is the default operating temperature for the device.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
1877000000 Features
Omnimate SL series
1877000000 Applications
There are a lot of Weidmüller
1877000000 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
