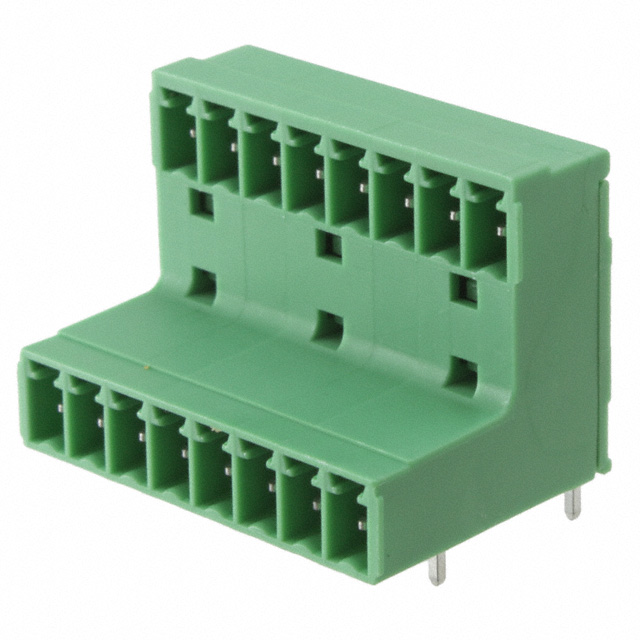

1830017
Or copy the link below:
- Mfr.Part #
- 1830017
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 16POS 3.81MM
- Stock
- 44,973
- In Stock ：
- 44,973
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Number of Ways :
- 8
- Series :
- COMBICON MCD
- Termination Style :
- Solder
- Weight :
- 116.000012g
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Additional Feature :
- STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
- Voltage :
- 300V
- RoHS Status :
- RoHS Compliant
- Length :
- 21.9mm
- Mounting Type :
- Through Hole
- Connector Type :
- PLUG
- Number of Levels :
- 2
- Safety Approval :
- CB; CCA; CSA; CUL; EAC; UL
- Mount :
- Through Hole
- Header Orientation :
- 90°, Right Angle
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Current :
- 8A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polyamide (PA), Nylon
- Contact Plating :
- Tin
- Number of Decks :
- 2
- Number of Rows :
- 1
- Voltage - IEC :
- 320V
- Number of Positions :
- 16
- Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Voltage - Rated :
- 160V
- Pitch :
- 0.150 3.81mm
- Insulation Height :
- 0.894 22.71mm
- Contact Tail Length :
- 0.138 3.50mm
- Published :
- 2011
- Color :
- Green
- Current Rating :
- 8A
- ECCN Code :
- EAR99
- Fastening Method :
- Connector
- Positions Per Level :
- 8
- Factory Lead Time :
- 4 Weeks
- Height :
- 26.2mm
- Width :
- 31.87mm
- Datasheets
- 1830017
Bulk 0.150 3.81mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MCD Polyamide (PA), Nylon
1830017 Overview
Packaging is in the form of Plug.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MCD Series.Other features include STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE, to name just a few.There is a mounting hole at Through Hole.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
1830017 Features
COMBICON MCD series
1830017 Applications
There are a lot of Phoenix Contact
1830017 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
