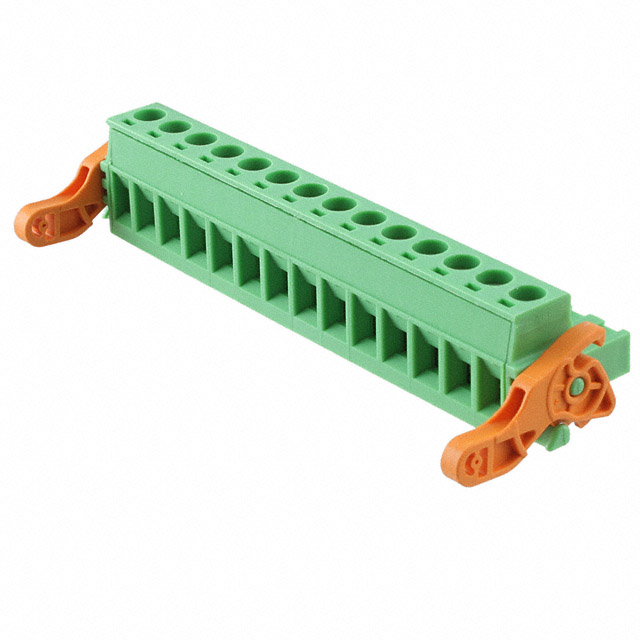

1809005
Or copy the link below:
- Mfr.Part #
- 1809005
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 14POS STR 5.08MM
- Stock
- 40,191
- In Stock ：
- 40,191
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Pbfree Code :
- yes
- Current - IEC :
- 12A
- Voltage - UL :
- 300V
- Type :
- Plug, Female Sockets
- Voltage - Rated :
- 250V
- Wire Strip Length :
- 7mm
- Insulation Height :
- 0.591 15.00mm
- Wire Gauge or Range - AWG :
- 12-30 AWG
- Torque - Screw :
- 0.5-0.6 Nm (4.4-5.3 Lb-In)
- Reach Compliance Code :
- Unknown
- Mount :
- Free Hanging
- Lead Free :
- Not Applicable
- RoHS Status :
- RoHS Compliant
- Approval Agency :
- cULus
- Current :
- 15A
- Plug Wire Entry :
- 180°
- ECCN Code :
- EAR99
- Material Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Packaging :
- Bulk
- Gender :
- FEMALE
- Wire Gauge (Max) :
- 30 AWG
- Current Rating :
- 12A
- Feature :
- Ejector Latches
- Color :
- Green
- Voltage - IEC :
- 630V
- Wire Gauge or Range - mm² :
- 0.2-2.5mm2
- Mounting Type :
- Free Hanging (In-Line)
- Factory Lead Time :
- 7 Weeks
- Termination Style :
- Screw - Rising Cage Clamp
- Contact Mating Finish :
- Tin
- Voltage :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Screw Size :
- M3
- Connector Type :
- Screw
- Flammability Rating :
- UL94 V-0
- Number of Levels :
- 1
- Pitch :
- 0.200 5.08mm
- Number of Positions Per Level :
- 14
- Number of Circuits :
- 4
- Housing Material :
- Polyamide (PA), Nylon
- Series :
- COMBICON MSTB
- Published :
- 2012
- Wire Gauge (Min) :
- 12 AWG
- Datasheets
- 1809005
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Polyamide (PA), Nylon Tin
1809005 Overview
Packaging is in the form of Screw.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MSTB Series.Several benefits come from the Ejector Latches feature.There is a mounting hole at Free Hanging.This part has 4 circuits.There are many benefits that this part shares with other Plug, Female Sockets products as well.
1809005 Features
COMBICON MSTB series
1809005 Applications
There are a lot of Phoenix Contact
1809005 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
