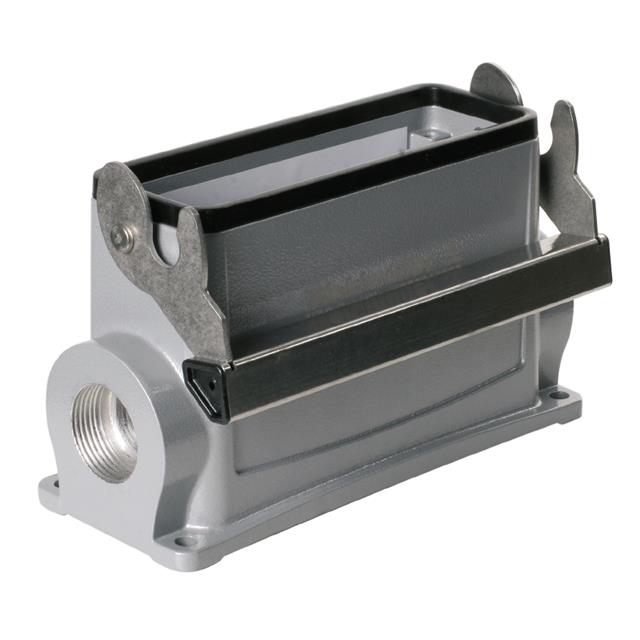

1805010000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Voltage - UL :

300V

Type :

Header, Male Pins, Shrouded (4 Side)

Ingress Protection :

IP10

Mounting Type :

Through Hole

Series :

Omnimate SL

Voltage - IEC :

320V

Number of Levels :

1

Operating Temperature :

-50°C~100°C

MIL Conformance :

No

Termination Style :

Solder

JESD-609 Code :

e3

Mount :

Through Hole

DIN Conformance :

No

Factory Lead Time :

37 Weeks

RoHS Status :

RoHS Compliant

Housing Material :

Liquid Crystal Polymer (LCP), Glass Filled

Gender :

Male

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Approval Agency :

CSA, UR

Number of Poles :

9

Radiation Hardening :

No

Current - IEC :

15A

Filter Feature :

No

Option :

GENERAL PURPOSE

Insulation Height :

0.293 7.44mm

Hole Diameter :

1.4 mm

Header Orientation :

90°, Right Angle

Contact Material :

COPPER ALLOY

Feature :

Mating Flange, Solder Retention

Contact Tail Length :

0.059 1.50mm

Contact Mating Finish :

Tin

IEC Conformance :

No

Number of Rows :

1

Current Rating :

13A

Mixed Contacts :

No

Voltage - Rated :

300V

Additional Feature :

High Density

Current - UL :

10A

Material Flammability Rating :

UL94 V-0

Pitch :

0.138 3.50mm

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Color :

Black

Pbfree Code :

yes

Total Number of Contacts :

9
