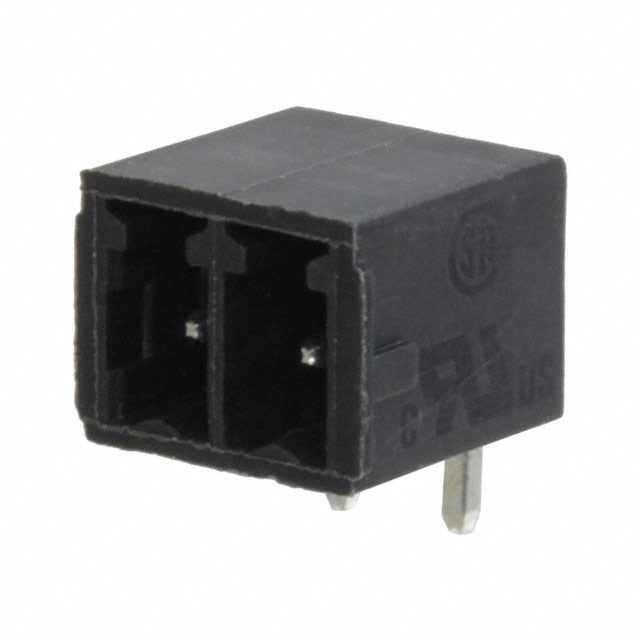

1793130000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Operating Temperature :

-50°C~120°C

Length :

9.02mm

Number of Rows :

1

Series :

Omnimate SC

Connector Type :

PCB, Terminal Block

Current - IEC :

17.5A

Width :

9.2mm

Orientation :

RIGHT ANGLE

Radiation Hardening :

No

Insulation Material :

Nylon

Number of Decks :

1

Additional Feature :

STANDARD: UL 94V-0, GLASS FILLED PA

Packaging :

Bulk

Number of Levels :

1

RoHS Status :

RoHS Compliant

Type :

Header, Male Pins, Shrouded (4 Side)

Termination Style :

Solder

Gender :

Male

Voltage :

300V

Voltage - IEC :

320V

Published :

2007

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Ingress Protection :

IP20

Approval Agency :

cURus

Header Orientation :

90°, Right Angle

Pitch :

0.150 3.81mm

Current :

10A

Safety Approval :

CUL; EAC; UL

Contact Mating Finish :

Tin

Hole Diameter :

1.2 mm

Housing Material :

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating :

UL94 V-0

Max Current Rating :

10A

Mounting Type :

Through Hole

Contact Material :

COPPER ALLOY

Fastening Method :

Connector

Number of Ways :

2

Color :

Black

Lead Free :

Lead Free

Depth :

9.2mm

Mount :

Through Hole

Insulation Height :

0.278 7.06mm

Contact Tail Length :

0.126 3.20mm

Flammability Rating :

UL94 V-0

Voltage - Rated :

300V

Factory Lead Time :

12 Weeks

Current Rating :

17.5A

REACH SVHC :

No SVHC

Number of Poles :

2

ECCN Code :

EAR99
