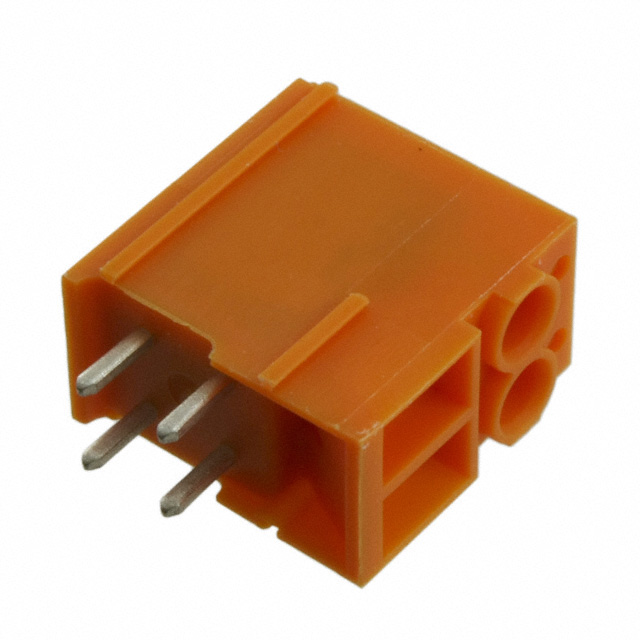

1785590000
Or copy the link below:
- Mfr.Part #
- 1785590000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2P SIDE ENT 5.08MM PCB
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Wire to Board
- Wire Gauge (Max) :
- 22 AWG
- Mating Orientation :
- Horizontal with Board
- Operating Temperature :
- -20°C~100°C
- Safety Approval :
- UL; VDE; CSA
- Mount :
- Through Hole
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material - Plating :
- Brass - Tin Plated
- Wire Gauge (Min) :
- 14 AWG
- Voltage :
- 300V
- Wire Gauge :
- 14-22 AWG
- Number of Ways :
- 2
- Number of Rows :
- 1
- Number of Decks :
- 1
- Width :
- 18.5mm
- Published :
- 2002
- Packaging :
- Bulk
- Flammability Rating :
- UL94 V-2
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Number of Contacts :
- 2
- Pbfree Code :
- yes
- Height :
- 18.6mm
- Torque - Screw :
- 0.4-0.5 Nm (3.5-4.4 Lb-In)
- Factory Lead Time :
- 12 Weeks
- Series :
- Omnimate TOP1.5GS
- HTS Code :
- 8536.69.40.40
- Current :
- 10A
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Levels :
- 1
- Color :
- Orange
- Screw Thread :
- M2.5
- Orientation :
- RIGHT ANGLE
- Termination :
- Screw
- Radiation Hardening :
- No
- ECCN Code :
- EAR99
- Pitch :
- 0.200 5.08mm
- Lead Free :
- Lead Free
- Contact Plating :
- Tin
- Mounting Type :
- Through Hole
- Wire Termination :
- Screw - TOP Clamp
- Datasheets
- 1785590000
0.200 5.08mm Orange Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - TOP Clamp 1 Levels 14-22 AWG Omnimate TOP1.5GS
1785590000 Overview
This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Omnimate TOP1.5GS Series.There is a mounting hole at Through Hole.Devices operate at -20°C~100°C operating temperatures.
1785590000 Features
Omnimate TOP1.5GS series
1785590000 Applications
There are a lot of Weidmüller
1785590000 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
