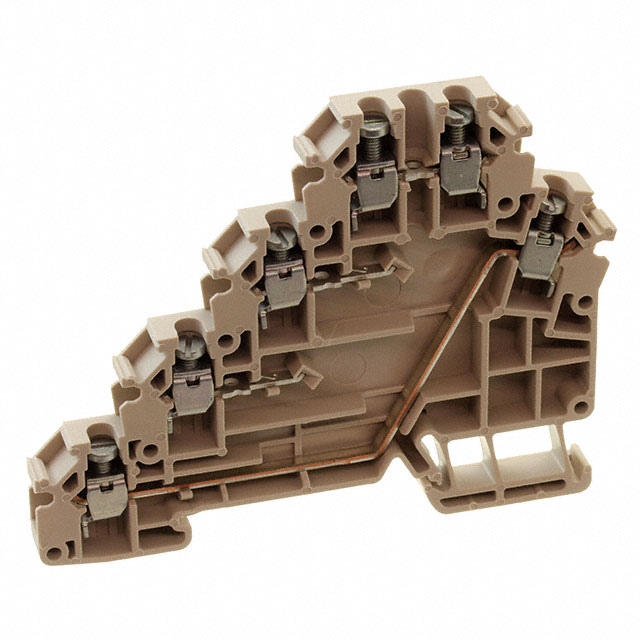

1784120000

Share

Or copy the link below:

Mfr.Part #
1784120000
Manufacturer
Weidmuller
Package / Case
Datasheet
Download
Description
CONN TERM BLK FEED THRU 12-26AWG
Stock
5
In Stock :
5

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Weidmuller
Product Category :
Din Rail, Channel
Material - Insulation :
Thermoplastic, Wemid
Safety Approval :
UL; VDE; CSA
Wire Gauge (Min) :
12 AWG
Color :
Beige
Height :
63mm
Voltage :
300V
Width :
6.15mm
Voltage - Rated :
250V
Length :
79.5mm
RoHS Status :
RoHS Compliant
Wire Gauge (Max) :
26 AWG
Terminal Width :
6.1mm
Termination Style :
Screw
Flammability Rating :
UL94 V-0
Approval Agency :
CE, IEC, UR
Moisture Sensitivity Level (MSL) :
Not Applicable
Current - IEC :
17.5A
Current :
10A
Number of Positions :
6
Pbfree Code :
yes
Current Rating :
17.5A
Type :
Feed Through, Isolated (2)
Wire Gauge or Range - AWG :
12-26 AWG
Number of Levels :
4; 2 Connected
Additional Feature :
Polyamide
Series :
W
Stripping Length :
8mm
ECCN Code :
EAR99
Published :
2014
Wire Gauge or Range - mm² :
0.5-4mm2
Material Flammability Rating :
UL94 V-0
Lead Free :
Lead Free
Factory Lead Time :
8 Weeks
Voltage - IEC :
250V
Datasheets
1784120000
Introducing Din Rail, Channel Weidmuller 1784120000 from Chip IC,where excellence meets affordability. This product stands out with its Voltage:300V, Type:Feed Through, Isolated (2), 1784120000 pinout, 1784120000 datasheet PDF, 1784120000 amp .Beyond Din Rail, Channel Weidmuller 1784120000 ,we also offer 1078960, 3208155, 3031212, Our vast inventory has you covered. Contact us now for immediate solutions.
