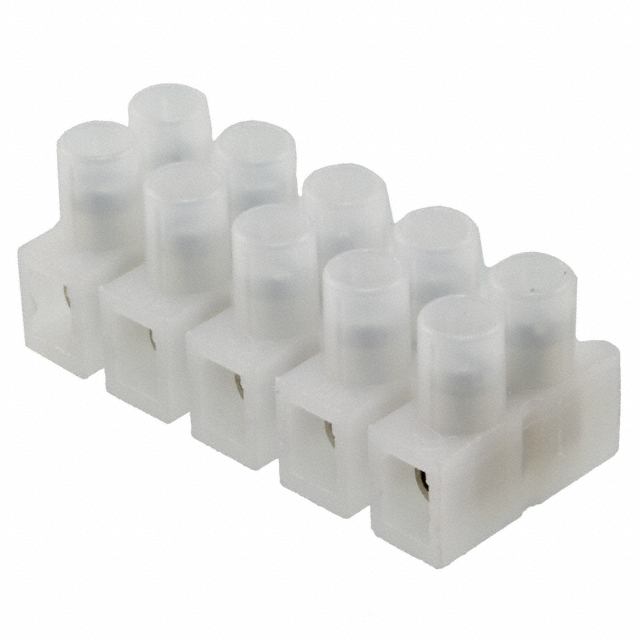

1776293-5
Or copy the link below:
- Mfr.Part #
- 1776293-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM STRIP 5CIRC 0.315"
- Stock
- 1,816
- In Stock ：
- 1,816
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Barrier Blocks
- Max Current Rating :
- 30A
- Housing Material :
- Polyamide
- Factory Lead Time :
- 11 Weeks
- Wire/Cable Gauge :
- 12 AWG
- Termination :
- Screw
- Number of Levels :
- 1
- Terminal Screw Material :
- Steel
- ECCN Code :
- EAR99
- Mounting Type :
- Chassis, Panel
- Approval Agency :
- UL
- Max Voltage Rating (AC) :
- 250V
- Operating Temperature :
- -35°C~100°C
- Thread Size :
- M3
- Barrier Type :
- Enclosed
- Length :
- 38mm
- Contact Plating :
- Tin
- Color :
- Natural
- ELV :
- Compliant
- Number of Rows :
- 2
- Published :
- 2007
- Radiation Hardening :
- No
- Number of Ways :
- 5
- Number of Positions :
- 5
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Top Termination :
- Screws
- Wire Gauge (Min) :
- 12 AWG
- Wire Gauge (Max) :
- 22 AWG
- Number of Wire Entries :
- 10
- Max Supply Voltage (AC) :
- 250V
- Current Rating :
- 30A
- Bottom Termination :
- Closed
- RoHS Status :
- RoHS Compliant
- Material - Insulation :
- Polyamide (PA66), Nylon 6/6
- Terminal Screw Finish :
- Zinc, Non-Hexavalent Chromate
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Series :
- TSB230, Buchanan
- Pitch :
- 0.315 8.00mm
- Orientation :
- Straight
- Number of Decks :
- 1
- Flammability Rating :
- UL94 V-2
- Contact Material :
- Brass
- Terminal Block Type :
- Eurostyle Terminal Strip
- Mount :
- Panel
- Wire Gauge :
- 12-22 AWG
- Material Flammability Rating :
- UL94 V-2
- Datasheets
- 1776293-5
Bulk 2 Rows Chassis, Panel Eurostyle Terminal Strip Closed TSB230, Buchanan 0.315 8.00mm Enclosed Polyamide (PA66), Nylon 6/6
1776293-5 Overview
Chassis, Panel is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the TSB230, Buchanan Series, it can be found in this category.In this case, Panel mounts the part.The device is operating at -35°C~100°C Operating Temperature.
1776293-5 Features
TSB230, Buchanan series
1776293-5 Applications
There are a lot of TE Connectivity AMP Connectors
1776293-5 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
