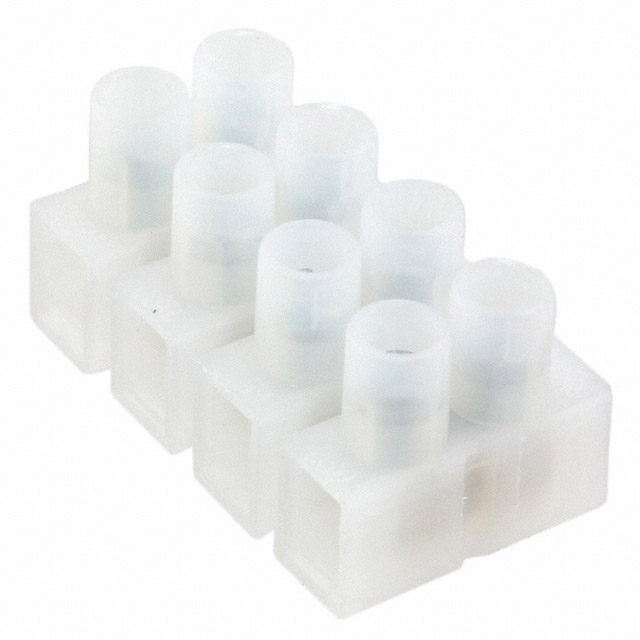

1776293-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Barrier Blocks

Bottom Termination :

Closed

Wire Gauge (Max) :

12 AWG

Length :

30mm

RoHS Status :

RoHS Compliant

Series :

TSB230, Buchanan

Current Rating (Amps) :

30A

Wire Gauge :

12-22 AWG

Number of Wire Entries :

8

Thread Size :

M3

Terminal Material :

Brass

Packaging :

Bulk

Color :

Natural

Flammability Rating :

UL94 V-2

Number of Rows :

2

Number of Poles :

4

Housing Material :

Polyamide

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Approval Agency :

UL

Current Rating :

30A

Wire Gauge (Min) :

26 AWG

Number of Levels :

1

ELV :

Compliant

Max Voltage Rating (AC) :

250V

Max Current Rating :

30A

Mount :

Panel

Operating Temperature :

-35°C~100°C

Mounting Type :

Chassis, Panel

Termination :

Screw

Pitch :

0.315 8.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Circuits :

4

Contact Material :

Brass

Max Supply Voltage (AC) :

250V

Number of Contacts :

8

Depth :

17mm

Terminal Screw Material :

Steel

Housing Color :

Natural

Published :

2007

Terminal Screw Finish :

Zinc, Non-Hexavalent Chromate

Orientation :

Straight

Factory Lead Time :

11 Weeks

Contact Plating :

Tin

Radiation Hardening :

No

Barrier Type :

Enclosed

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Material Flammability Rating :

UL94 V-2

Voltage - Rated :

250V

Number of Positions :

4

Wire/Cable Gauge :

12 AWG

Top Termination :

Screws

Max Operating Temperature :

100°C

Terminal Block Type :

Eurostyle Terminal Strip

Min Operating Temperature :

-35°C
