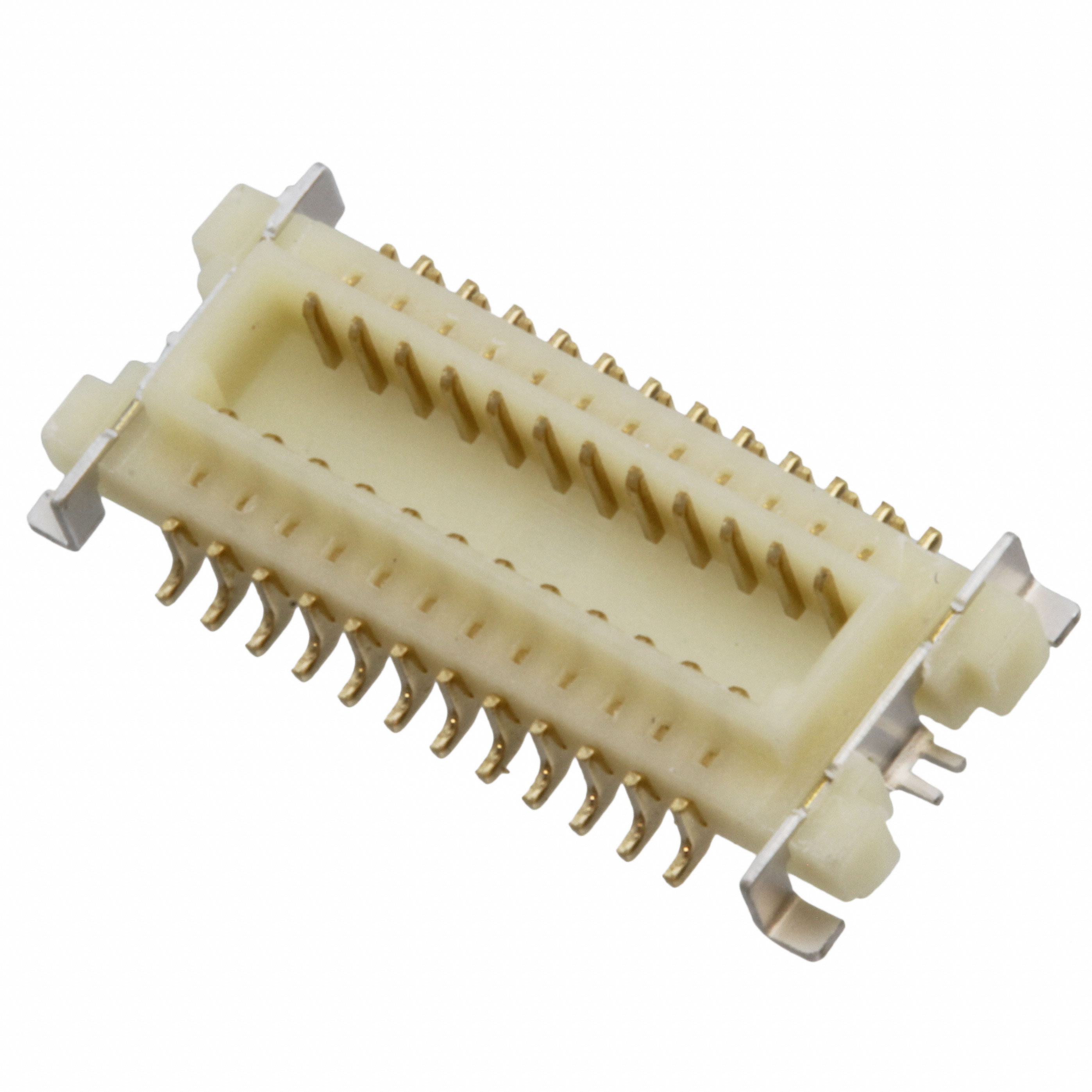

1775014-2
Or copy the link below:
- Mfr.Part #
- 1775014-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 24POS SMD GOLD
- Stock
- 2,165
- In Stock ：
- 2,165
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Published :
- 2005
- Height Above Board :
- 0.094 2.40mm
- Contact Finish Thickness :
- Flash
- Orientation :
- Vertical
- Feature :
- Board Guide, Solder Retention
- Height :
- 2.395728mm
- Mating Alignment :
- With
- Mount :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- Fine Stack (FS)
- Contact Finish :
- Gold
- Circuit Application :
- Signal
- Pitch :
- 0.031 0.80mm
- Sealable :
- No
- Max Operating Temperature :
- 85°C
- Connector Type :
- Plug, Outer Shroud Contacts
- Row Spacing :
- 4.292346 mm
- Stack Height (Mating) :
- 3mm
- Stack Height :
- 2.9972mm
- Contact Material :
- Bronze
- Contact Shape :
- Square
- Operating Supply Voltage :
- 50V
- Mounting Type :
- Surface Mount
- Number of Rows :
- 2
- Factory Lead Time :
- 12 Weeks
- Min Operating Temperature :
- -25°C
- Number of Positions :
- 24
- Packaging :
- Cut Tape (CT)
- Housing Material :
- Thermoplastic
- Insulation Resistance :
- 2MOhm
- Termination :
- SMD/SMT
- Preloaded :
- yes
- Flammability Rating :
- UL94 V-0
- PCB Mount Retention :
- Without
- ELV :
- Compliant
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Natural
- Contact Current Rating :
- 500mA
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Datasheets
- 1775014-2
Plug, Outer Shroud Contacts Cut Tape (CT) 2 Rows 0.031 0.80mm Surface Mount 24 Positions Fine Stack (FS) Gold SMD/SMT Bronze
1775014-2 Overview
You get it in Plug, Outer Shroud Contacts packaging.Packaged in a Cut Tape (CT) case.Mounting type Surface Mount is selected for the device.A member of the Fine Stack (FS) Series.Maintaining Board Guide, Solder Retention is easy.Use a Surface Mount socket to mount this.Using it at a temperature below 85°C is ideal.A minimum temperature of -25°C is needed for this device.In that case, this device is suitable for use with a 50V supply.
1775014-2 Features
Fine Stack (FS) series
Package / Case: Cut Tape (CT)
Mounting Type:Surface Mount
Max Operating temperature at -25°C
1775014-2 Applications
There are a lot of TE Connectivity AMP Connectors
1775014-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
