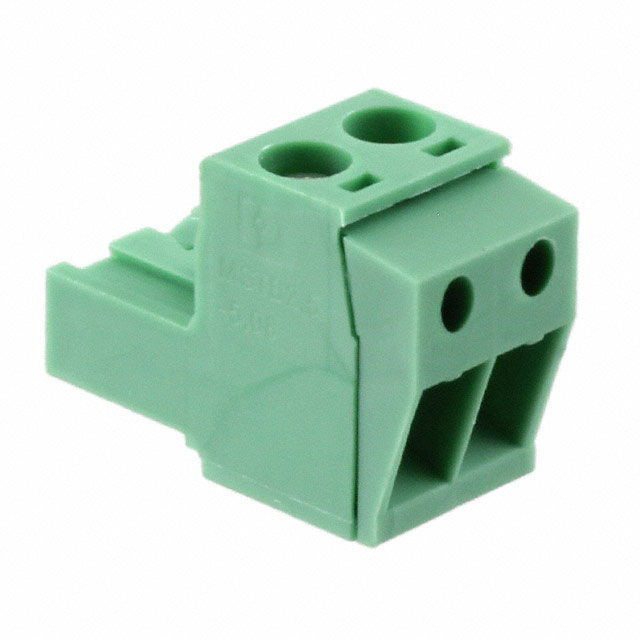

1769010

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Number of Levels :

1

Series :

COMBICON MSTBP

Material Flammability Rating :

UL94 V-0

Screw Size :

M3

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Wire Gauge or Range - AWG :

12-30 AWG

Current :

15A

Number of Ways :

2

Width :

21.3mm

Weight :

128.999997g

Published :

2011

Mount :

Free Hanging

Pbfree Code :

yes

Contact Plating :

Tin

Plug Wire Entry :

180°

Number of Rows :

1

Feature :

Retention Latches (Non-Wire Side)

Mounting Type :

Free Hanging (In-Line)

Wire Gauge or Range - mm² :

0.2-2.5mm2

Wire Strip Length :

7mm

Height :

15mm

Current - IEC :

12A

Wire Gauge (Min) :

24 AWG

Number of Positions :

2

Housing Material :

Polyamide (PA), Nylon

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage :

300V

Current Rating :

12A

Number of Decks :

1

HTS Code :

8536.69.40.40

RoHS Status :

RoHS Compliant

Voltage - Rated :

250V

Additional Feature :

PA, 94V-0

Flammability Rating :

UL94 V-0

Insulation Height :

0.591 15.00mm

Voltage - IEC :

630V

Packaging :

Bulk

Length :

10.16mm

Termination Style :

Screw - Rising Cage Clamp

Color :

Green

ECCN Code :

EAR99

Connector Type :

Screw, Socket

Factory Lead Time :

4 Weeks

Pitch :

0.200 5.08mm

Safety Approval :

UL

Wire Gauge (Max) :

12 AWG

Termination :

Screw

Type :

Plug, Female Sockets
