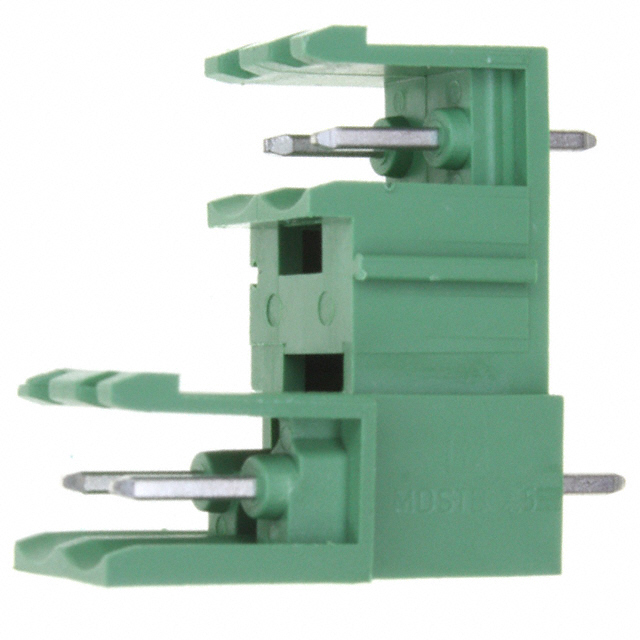

1763032
Or copy the link below:
- Mfr.Part #
- 1763032
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 4POS VERT 5MM
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Voltage - IEC :
- 400V
- Insulation Height :
- 0.870 22.10mm
- Mounting Type :
- Through Hole
- Pitch :
- 0.197 5.00mm
- Depth :
- 23.7mm
- Color :
- Green
- Voltage - Rated :
- 250V
- Header Orientation :
- Vertical
- Safety Approval :
- UL; CSA; GL
- Published :
- 2011
- Height :
- 23.7mm
- Max Current Rating :
- 10A
- Factory Lead Time :
- 4 Weeks
- Mount :
- Through Hole
- Weight :
- 2.100133kg
- Current Rating :
- 10A
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Flammability Rating :
- UL94 V-0
- Width :
- 26mm
- Current :
- 12A
- Pbfree Code :
- yes
- Termination Style :
- Solder
- ECCN Code :
- EAR99
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Length :
- 12.5mm
- Number of Rows :
- 2
- Lead Free :
- Lead Free
- Contact Plating :
- Tin
- Voltage :
- 300V
- Positions Per Level :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Decks :
- 2
- Series :
- COMBICON MDSTBV
- RoHS Status :
- RoHS Compliant
- Number of Ways :
- 4
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- Straight
- Connector Type :
- PLUG
- Reach Compliance Code :
- Unknown
- Contact Tail Length :
- 0.154 3.90mm
- Number of Positions :
- 4
- Datasheets
- 1763032
Bulk 0.197 5.00mm Green Through Hole Header, Male Pins, Shrouded (2 Side) COMBICON MDSTBV Polybutylene Terephthalate (PBT)
1763032 Overview
Currently, it is packaged in Plug.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the COMBICON MDSTBV Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.As with other Header, Male Pins, Shrouded (2 Side) products, this part also offers a wide range of benefits.
1763032 Features
COMBICON MDSTBV series
1763032 Applications
There are a lot of Phoenix Contact
1763032 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
