1759017

Share

Or copy the link below:

Mfr.Part #
1759017
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
TERM BLOCK HDR 2POS 90DEG 5.08MM
Stock
2,388
In Stock :
2,388

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Headers, Plugs and Sockets
HTS Code :
8536.69.40.40
Thickness :
5.08mm
Fastening Method :
Connector
Flammability Rating :
UL94 V-0
RoHS Status :
RoHS Compliant
Insulation Height :
0.339 8.61mm
Number of Decks :
1
Width :
12.1mm
Packaging :
Bulk
Factory Lead Time :
7 Weeks
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Lead Free :
Lead Free
Pitch :
0.200 5.08mm
Number of Rows :
1
Number of Levels :
1
Type :
Header, Male Pins, Shrouded (2 Side)
Mount :
Through Hole
Current :
15A
Contact Tail Length :
0.138 3.50mm
Pbfree Code :
yes
Voltage - IEC :
400V
ECCN Code :
EAR99
Voltage - Rated DC :
320V
Max Current Rating :
12A
Number of Ways :
2
Current Rating :
12A
Approval Agency :
CSA, EN, UL, VDE
Contact Mating Finish :
Tin
Voltage :
300V
Safety Approval :
CB; CCA; CSA; CUL; EAC; UL
Series :
COMBICON MSTB
Number of Positions :
2
Material Flammability Rating :
UL94 V-0
Contact Material :
Copper
Orientation :
RIGHT ANGLE
Termination Style :
Solder
Housing Material :
Polyamide (PA), Nylon
Color :
Green
Additional Feature :
UL 94V-0, PA, SAFETY APPROVAL: VDE
Voltage - Rated :
250V
Weight :
151.999994g
Depth :
12mm
Height :
12mm
Mounting Type :
Through Hole
Number of Poles :
2
Published :
2010
Header Orientation :
90°, Right Angle
Length :
10.16mm
Datasheets
1759017
Introducing Headers, Plugs and Sockets Phoenix Contact 1759017 from Chip IC,where excellence meets affordability. This product stands out with its Type:Header, Male Pins, Shrouded (2 Side), Voltage:300V, Mounting Type:Through Hole, 1759017 pinout, 1759017 datasheet PDF, 1759017 amp .Beyond Headers, Plugs and Sockets Phoenix Contact 1759017 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

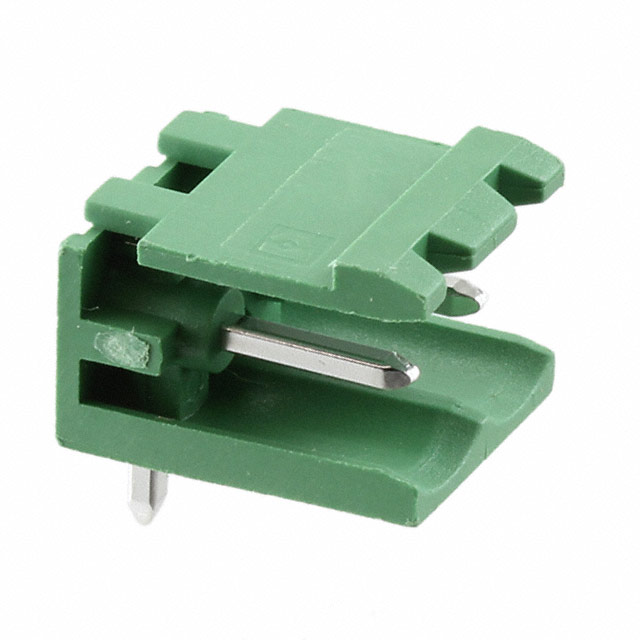

Phoenix Contact 1759017


Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) COMBICON MSTB Polyamide (PA), Nylon Tin Copper

1759017 Overview


Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the COMBICON MSTB Series of products.Additionally, there are other features, such as UL 94V-0, PA, SAFETY APPROVAL: VDE.Through Hole mounts the part.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (2 Side) products.

1759017 Features


COMBICON MSTB series


1759017 Applications


There are a lot of Phoenix Contact
1759017 Terminal Blocks applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
