1757020000

Share

Or copy the link below:

Mfr.Part #
1757020000
Manufacturer
Weidmuller
Package / Case
Datasheet
Download
Description
TERM BLOCK HDR 18POS VERT 3.5MM
Stock
296
In Stock :
296

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Weidmuller
Product Category :
Headers, Plugs and Sockets
Series :
Omnimate S2L
Height :
14.2mm
Number of Positions :
18
Termination Style :
Solder
DIN Conformance :
No
Current :
7A
RoHS Status :
RoHS Compliant
Color :
Orange
Positions Per Level :
9
Factory Lead Time :
16 Weeks
Published :
2008
Moisture Sensitivity Level (MSL) :
Not Applicable
Type :
Header, Male Pins, Shrouded (4 Side)
Contact Material :
COPPER ALLOY
Header Orientation :
Vertical
Operating Temperature :
-50°C~100°C
Material Flammability Rating :
UL94 V-0
Lead Free :
Lead Free
Insulation Resistance :
1MOhm
Housing Material :
Polybutylene Terephthalate (PBT)
Pbfree Code :
yes
Total Number of Contacts :
18
MIL Conformance :
No
Contact Mating Finish :
Gold
Option :
GENERAL PURPOSE
Flammability Rating :
UL94 V-0
Number of Levels :
2
Mounting Type :
Through Hole
Filter Feature :
No
Mixed Contacts :
No
Voltage - IEC :
250V
JESD-609 Code :
e4
Ingress Protection :
IP10
Mount :
Through Hole
Feature :
Mating and Mounting Flange
Radiation Hardening :
No
Packaging :
Bulk
Current - IEC :
10A
Pitch :
0.138 3.50mm
Number of Rows :
2
Voltage :
150V
Contact Tail Length :
0.138 3.50mm
Insulation Height :
0.559 14.20mm
IEC Conformance :
No
Introducing Headers, Plugs and Sockets Weidmuller 1757020000 from Chip IC,where excellence meets affordability. This product stands out with its Type:Header, Male Pins, Shrouded (4 Side), Operating Temperature:-50°C~100°C, Mounting Type:Through Hole, Voltage:150V, 1757020000 pinout, 1757020000 datasheet PDF, 1757020000 amp .Beyond Headers, Plugs and Sockets Weidmuller 1757020000 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

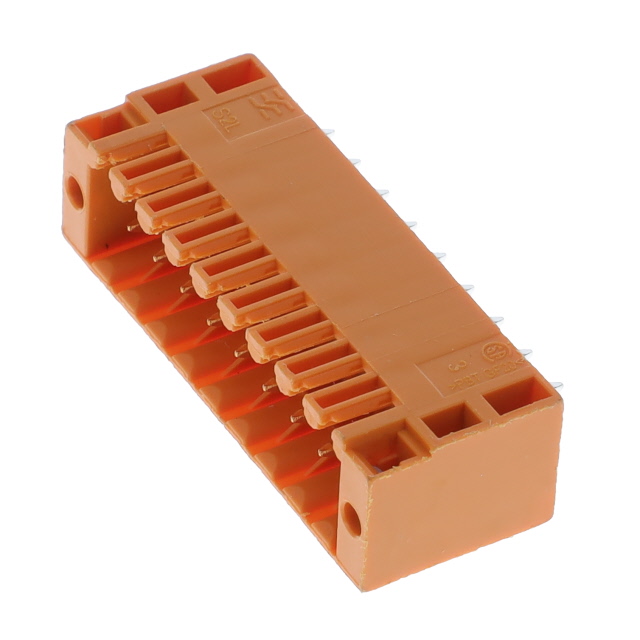

Weidmuller 1757020000


Bulk 0.138 3.50mm Orange 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate S2L Polybutylene Terephthalate (PBT) Gold Copper Alloy

1757020000 Overview


Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Omnimate S2L Series.It is more powerful in many ways due to its Mating and Mounting Flange feature.It is mounted by Through Hole.It operates at an operating temperature of -50°C~100°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.

1757020000 Features


Omnimate S2L series


1757020000 Applications


There are a lot of Weidmüller
1757020000 Terminal Blocks applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
