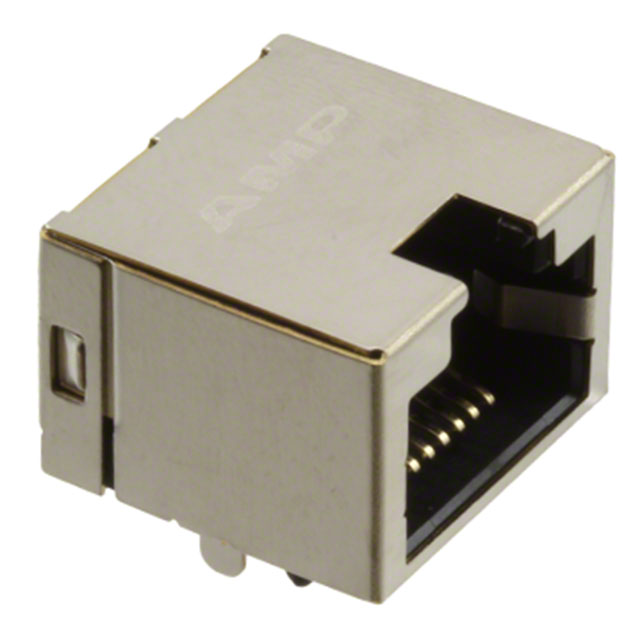

1734795-1
Or copy the link below:
- Mfr.Part #
- 1734795-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A SHIELDED
- Stock
- 408
- In Stock ：
- 408
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- ELV :
- Compliant
- Contact Resistance :
- 50mOhm
- Element Configuration :
- Single
- Flammability Rating :
- UL94 V-0
- Plating Thickness :
- 6μin
- Length - Tail :
- 2.4mm
- Tab Direction :
- UP
- Factory Lead Time :
- 5 Weeks
- Orientation :
- 90° Angle (Right)
- Reference Standard :
- UL, CSA
- Ratings :
- Cat3
- Contact Finish Thickness - Mating :
- 150 nm
- Number of Positions Loaded :
- 8
- Total Number of Contacts :
- 8
- Insulation Resistance :
- 200000000Ohm
- Packaging :
- Tray
- Pitch :
- 2.04mm
- ECCN Code :
- EAR99
- REACH SVHC :
- Unknown
- Shell Finish :
- Nickel
- Length :
- 16.18mm
- Termination :
- Solder
- Current Rating :
- 1A
- PCB Thickness :
- 1.6mm
- Durability :
- 750 Cycles
- RoHS Status :
- RoHS Compliant
- Body Breadth :
- 0.445 inch
- Gender :
- Male
- Circuit Application :
- Signal
- Mounting Type :
- Through Hole
- Housing Material :
- Polyamide (PA9T), Nylon 9T, Glass Filled
- PCB Mounting Orientation :
- RIGHT ANGLE
- Connector Type :
- JACK
- Body/Shell Style :
- Receptacle
- Shielding :
- Shielded
- Contact Finish Thickness :
- 6.00μin 0.152μm
- Number of Ports :
- 1
- Pbfree Code :
- yes
- PCB Contact Pattern :
- STAGGERED
- Height :
- 11.5mm
- Min Operating Temperature :
- -40°C
- LED Color :
- Does Not Contain LED
- Depth :
- 15mm
- Shell Material :
- Brass
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Keyed :
- No
- Contact Style :
- TELCOM, MODULAR
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- Reliability :
- COMMERCIAL
- Max Operating Temperature :
- 85°C
- Published :
- 2011
- Color :
- Black
- Feature :
- Board Guide
- Contact Material :
- Phosphor Bronze
- Rated Current (Signal) :
- 1A
- Contact Finish :
- Gold
- Datasheets
- 1734795-1
Jack Tray Shielded 8p8c (RJ45, Ethernet) 1 Port 90° Angle (Right) Solder Through Hole
1734795-1 Overview
It comes in Jack packaging.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.You should use it when it's below 85°C.A minimum temperature of -40°C is required for the operation of this device.A variety of tasks can be managed through its 1 ports.In many ways, its Board Guide feature makes it more powerful.
1734795-1 Features
1734795-1 Applications
There are a lot of TE Connectivity AMP Connectors
1734795-1 Modular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
