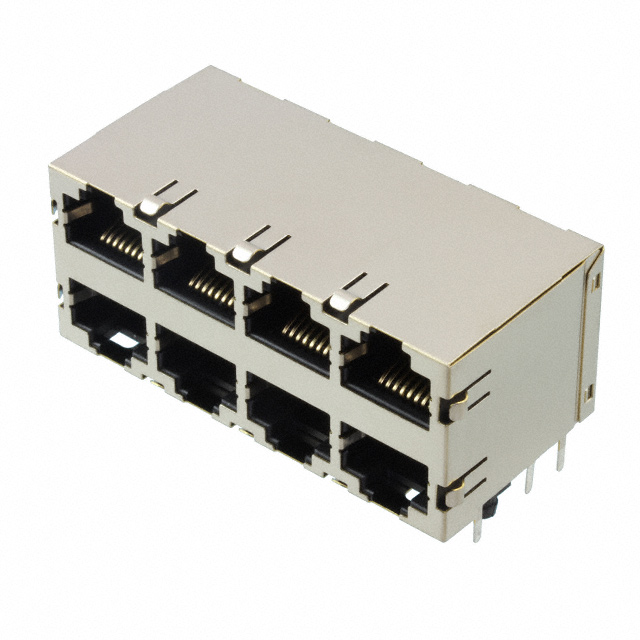

1734715-2
Or copy the link below:
- Mfr.Part #
- 1734715-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A SHIELDED
- Stock
- 1,219
- In Stock ：
- 1,219
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- PCB Mounting Orientation :
- RIGHT ANGLE
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Shielding :
- Shielded, EMI Finger
- Number of Ports :
- 8
- Operating Temperature :
- -40°C~70°C
- ELV :
- Compliant
- Depth :
- 29.4mm
- Packaging :
- Tube
- Color :
- Black
- Keyed :
- No
- Feature :
- Board Lock
- Contact Finish :
- Gold
- Direction :
- Up and Down
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- Pitch :
- 2.54mm
- Tab Direction :
- Up and Down
- Length - Tail :
- 3.25mm
- Circuit Application :
- Signal
- Orientation :
- 90° Angle (Right)
- Number of Contacts :
- 64
- Connector Type :
- JACK
- Height :
- 25.3mm
- Contact Finish Thickness - Mating :
- 380 nm
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Voltage Rating (AC) :
- 150V
- Factory Lead Time :
- 11 Weeks
- Contact Material :
- Phosphor Bronze
- Number of Rows :
- 2
- Current Rating :
- 1A
- PCB Thickness :
- 1.6mm
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Published :
- 2008
- Ratings :
- Cat3
- Length :
- 59.25mm
- LED Color :
- Does Not Contain LED
- Housing Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Datasheets
- 1734715-2
Jack Tube Shielded, EMI Finger 8p8c (RJ45, Ethernet) 8 Port 90° Angle (Right) Solder Through Hole -40°C~70°C
1734715-2 Overview
Packaging is in the form of Jack.The mounting type of the device is Through Hole.A Tube case is used to package the product.There are 8 ports available for a variety of tasks to be performed on it.A number of features make the Board Lock feature more powerful.-40°C~70°C Operating Temperature is the default operating temperature for the device.
1734715-2 Features
1734715-2 Applications
There are a lot of TE Connectivity AMP Connectors
1734715-2 Modular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
