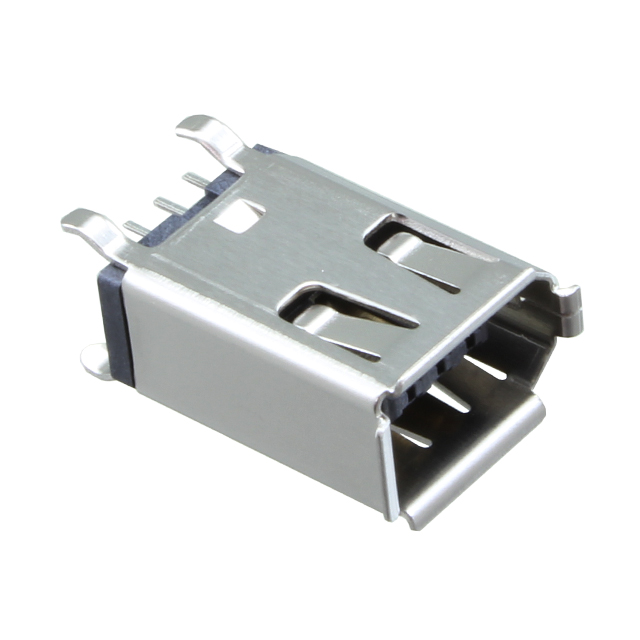

1734290-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

USB, DVI, HDMI Connector Assemblies

Contact Finish :

Gold

Reference Standard :

UL

Durability :

20000 cycles

Contact Current Rating :

1.5A

Length :

8.5mm

Mount :

Through Hole, Vertical

Max Operating Temperature :

185°C

Current Rating :

1.5A

Housing Material :

Thermoplastic

Number of Ports :

1

Circuit Application :

Signal

Min Operating Temperature :

-67°C

Plating :

Copper, Nickel

UL Flammability Code :

94V-0

Termination :

Solder

Depth :

13.45mm

Pbfree Code :

yes

Gender :

Receptacle

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Body Breadth :

0.335 inch

Pitch :

2mm

Number of Conductors :

ONE

IEC Conformance :

No

Insulation Color :

Black

Factory Lead Time :

12 Weeks

Option :

GENERAL PURPOSE

Number Of PCB Rows :

2

Mounting Type :

Through Hole

Number of Contacts :

6

RoHS Status :

RoHS Compliant

Mixed Contacts :

No

Packaging :

Tray

Mounting Feature :

Vertical

Published :

2007

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Length - Tail :

2.6924mm

Radiation Hardening :

No

ELV :

Compliant

Filter Feature :

No

DIN Conformance :

No

Empty Shell :

No

Connector Type :

Firewire (IEEE 1394)

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL94 V-0

Shell/Shielding Material :

Brass

Shell Material :

Phosphor Bronze

Insulation Resistance :

500000000Ohm
