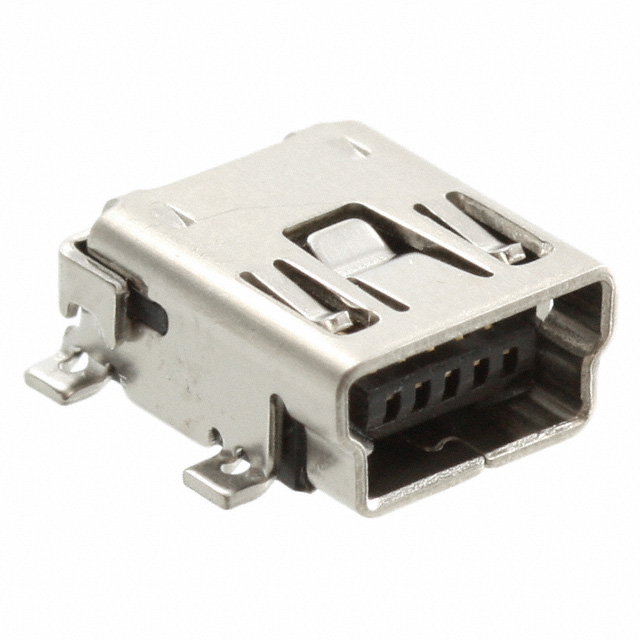

1734035-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

USB, DVI, HDMI Connector Assemblies

Connector Type :

USB - mini B

Insulation Color :

Black

Contact Style :

USB, SER B SQ

Plating Thickness :

760 nm

Operating Temperature :

-40°C~85°C

IEC Conformance :

No

Insulation Resistance :

100MOhm

Polarization Key :

POLARIZED HOUSING

Material Flammability Rating :

UL94 V-0

Housing Material :

Thermoplastic

Length :

8.45mm

Radiation Hardening :

No

Body Depth :

0.33 inch

Mount :

Horizontal, Surface Mount

PCB Thickness :

1.5748mm

Filter Feature :

No

Flammability Rating :

UL94 V-0

Specifications :

USB 2.0

RoHS Status :

RoHS Compliant

Total Number of Contacts :

5

Width :

7.7mm

Mounting Type :

Surface Mount, Right Angle

Shielding :

Shielded

Contact Material :

Copper

Feature :

Board Guide, Solder Retention

USB :

USB 2.0

Circuit Application :

Power

Pitch :

800μm

Termination :

Solder

Reference Standard :

UL

Number of Ports :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tray

Rated Current (Signal) :

1A

Pbfree Code :

yes

MIL Conformance :

No

ELV :

Compliant

Number Of PCB Rows :

1

Voltage - Rated AC :

30V

REACH SVHC :

Unknown

Mounting Feature :

Horizontal

Number of Conductors :

ONE

Published :

2007

DIN Conformance :

No

Number of Terminations :

5

PCB Contact Pattern :

RECTANGULAR

Current Rating :

1A

Gender :

Receptacle

Lead Free :

Lead Free

UL Flammability Code :

94V-0

Contact Current Rating :

1A

Reliability :

COMMERCIAL

Mating Cycles :

5000

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Empty Shell :

No

Factory Lead Time :

13 Weeks

Plating :

Nickel

Shell/Shielding Material :

Steel (SUS304)

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Voltage - Rated :

30VAC

Contact Finish :

Gold

Orientation :

RIGHT ANGLE
