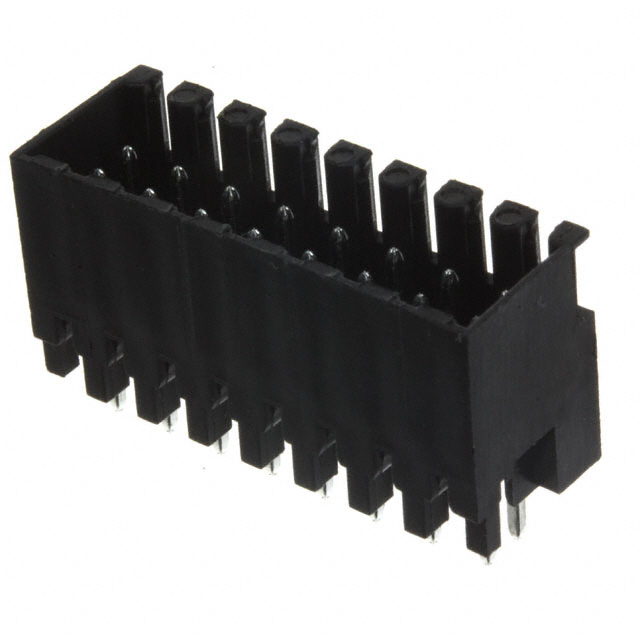

1729000000
- Mfr.Part #
- 1729000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 16POS VERT 3.5MM
- Stock
- 87
- In Stock :
- 87
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Operating Temperature :
- -50°C~100°C
- Current :
- 7A
- IEC Conformance :
- No
- MIL Conformance :
- No
- Hole Diameter :
- 1 mm
- Mounting Type :
- Through Hole
- Mixed Contacts :
- No
- Radiation Hardening :
- No
- Insulation Resistance :
- 1MOhm
- Connector Type :
- PCB, Terminal Block
- Voltage - IEC :
- 250V
- Pbfree Code :
- yes
- Lead Free :
- Lead Free
- Header Orientation :
- Vertical
- Number of Poles :
- 16
- Material Flammability Rating :
- UL94 V-0
- Ingress Protection :
- IP10
- Flammability Rating :
- UL94 V-0
- Published :
- 2008
- Series :
- Omnimate S2L
- Packaging :
- Bulk
- Operating Supply Voltage :
- 150V
- Wire/Cable Gauge :
- 16 AWG
- Option :
- GENERAL PURPOSE
- Positions Per Level :
- 8
- RoHS Status :
- RoHS Compliant
- Pitch :
- 0.138 3.50mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Gender :
- Male
- DIN Conformance :
- No
- Depth :
- 10.5mm
- Current Rating :
- 9A
- Approval Agency :
- CSA, UR
- Housing Material :
- Polybutylene Terephthalate (PBT)
- REACH SVHC :
- Unknown
- Number of Levels :
- 2
- Voltage :
- 150V
- Number of Rows :
- 1
- Color :
- Black
- Mount :
- Through Hole
- Factory Lead Time :
- 16 Weeks
- Max Current Rating :
- 7A
- Contact Material :
- COPPER ALLOY
- Current - IEC :
- 10A
- Contact Tail Length :
- 0.138 3.50mm
- Filter Feature :
- No
- Insulation Height :
- 0.559 14.20mm
- Contact Mating Finish :
- Tin
- Termination Style :
- Solder
- Type :
- Header, Male Pins, Shrouded (4 Side)
- JESD-609 Code :
- e3
- Voltage - Rated :
- 50V
- Total Number of Contacts :
- 16
- Datasheets
- 1729000000
1729000000 Documents

Bulk 0.138 3.50mm Black 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate S2L Polybutylene Terephthalate (PBT) Tin Copper Alloy
1729000000 Overview
The packaging contains PCB, Terminal Block.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Omnimate S2L belongs to the Omnimate S2L Series.There is a Through Hole mount on the part.This device operates at a temperature of -50°C~100°C.When the supply voltage is set to 150V, this Backplane Connector will work.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
1729000000 Features
Omnimate S2L series
1729000000 Applications
There are a lot of Weidmüller
1729000000 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
