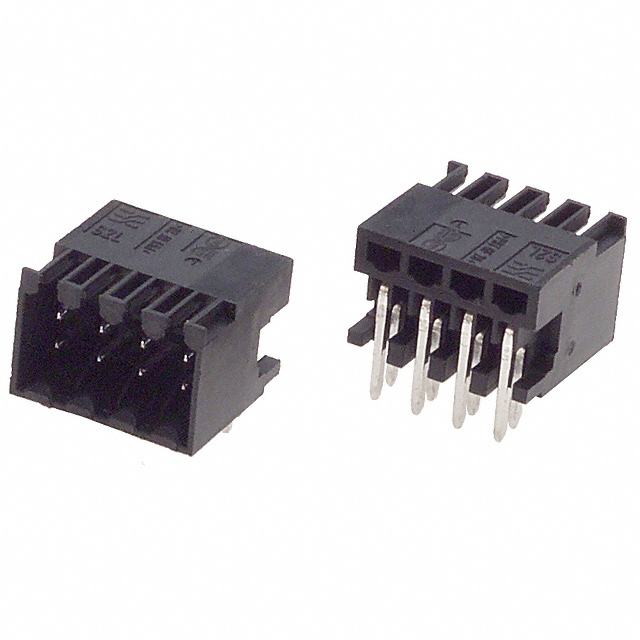

1728000000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Material Flammability Rating :

UL94 V-0

Contact Tail Length :

0.138 3.50mm

Series :

Omnimate S2L

Ingress Protection :

IP10

Mounting Type :

Through Hole

Packaging :

Bulk

Current Rating :

10A

IEC Conformance :

No

Operating Temperature :

-50°C~100°C

Type :

Header, Male Pins, Shrouded (4 Side)

Hole Diameter :

1.3 mm

Termination Style :

Solder

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Number of Rows :

1

Current :

7A

Mount :

Through Hole

Mixed Contacts :

No

Contact Mating Finish :

Tin

Approval Agency :

CSA, UR

Moisture Sensitivity Level (MSL) :

Not Applicable

Option :

GENERAL PURPOSE

Color :

Black

Number of Poles :

8

JESD-609 Code :

e3

Total Number of Contacts :

8

Lead Free :

Lead Free

Flammability Rating :

UL94 V-0

Insulation Height :

0.410 10.41mm

Voltage - Rated :

150V

Positions Per Level :

4

Depth :

14.2mm

Header Orientation :

90°, Right Angle

Insulation Resistance :

1MOhm

Voltage :

150V

Number of Levels :

2

Filter Feature :

No

Contact Material :

COPPER ALLOY

Gender :

Male

Max Current Rating :

10A

MIL Conformance :

No

Radiation Hardening :

No

Length :

29.4mm

Pitch :

0.138 3.50mm

Published :

2009

Housing Material :

Polybutylene Terephthalate (PBT)

DIN Conformance :

No

Factory Lead Time :

16 Weeks

Voltage - IEC :

250V

Orientation :

RIGHT ANGLE
