1726040

Share

Or copy the link below:

Mfr.Part #
1726040
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
TERM BLK 2P SIDE ENT 5.08MM PCB
Stock
149
In Stock :
149

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Wire to Board
Number of Circuits :
4
RoHS Status :
RoHS Compliant
Color :
Green
Max Current Rating :
13.5A
Max Supply Voltage :
250V
Packaging :
Bulk
Termination :
Screw
Factory Lead Time :
4 Weeks
Mating Orientation :
Horizontal with Board
Torque - Screw :
0.5-0.6 Nm (4.4-5.3 Lb-In)
Mount :
Through Hole
Mounting Type :
Through Hole
Screw Thread :
M3
Number of Lines :
2
Width :
19.1mm
Radiation Hardening :
No
Lead Free :
Lead Free
REACH SVHC :
No SVHC
Current Rating :
13.5A
Housing Material :
Polyamide (PA), Nylon
Weight :
28.349523g
Published :
2001
Wire Gauge :
14-30 AWG
Lead Pitch :
5.08mm
Wire/Cable Gauge :
26 AWG
Series :
COMBICON MKKDSN
Voltage - Rated AC :
250V
Number of Poles :
4
Wire Termination :
Screw - Rising Cage Clamp
Number of Positions Per Level :
2
Pitch :
0.200 5.08mm
Housing Color :
Green
Wire Gauge (Min) :
14 AWG
Number of Rows :
2
Min Operating Temperature :
-20°C
Connector Type :
Screw
Positions Per Level :
2
Current :
10A
Number of Contacts :
2
Feature :
Interlocking (Side)
Number of Levels :
2
Orientation :
Straight
Wire Gauge (Max) :
26 AWG
Voltage :
300V
Number of Positions :
2
Max Operating Temperature :
100°C
Voltage - Rated :
250V
Depth :
18.3mm
Contact Material :
Tin
Flammability Rating :
UL94 V-0
Test Voltage :
4kV
Number of Pins :
4
Length :
12.7mm
Height :
18.3mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Datasheets
1726040
Introducing Wire to Board Phoenix Contact 1726040 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Voltage:300V, Number of Pins:4, 1726040 pinout, 1726040 datasheet PDF, 1726040 amp .Beyond Wire to Board Phoenix Contact 1726040 ,we also offer 1985218, 1984989, 1706714, Our vast inventory has you covered. Contact us now for immediate solutions.

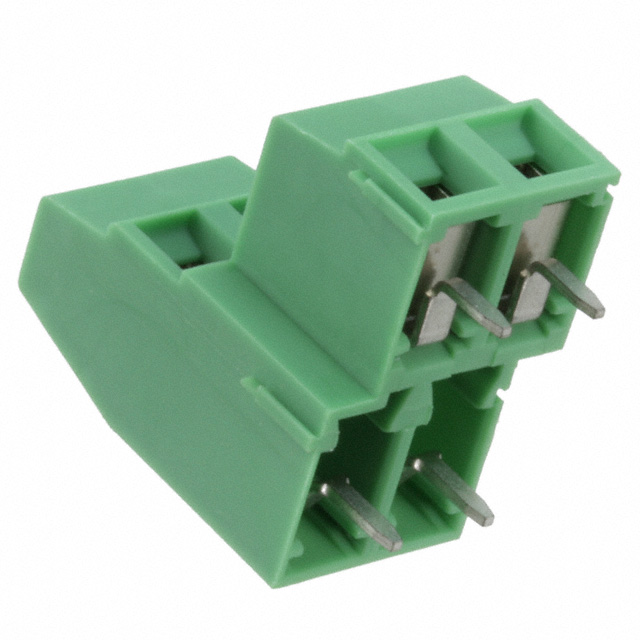

Phoenix Contact 1726040


0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 14-30 AWG COMBICON MKKDSN

1726040 Overview


It comes in Screw packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MKKDSN Series of products.The device is equipped with 4 pins.It's best to use it when the temperature is below 100°C.This device must operate at a minimum temperature of -20°C.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The part consists of 4 circuits.The supply voltage of this chip should not exceed 250V.

1726040 Features


COMBICON MKKDSN series


1726040 Applications


There are a lot of Phoenix Contact
1726040 Terminal Blocks applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
