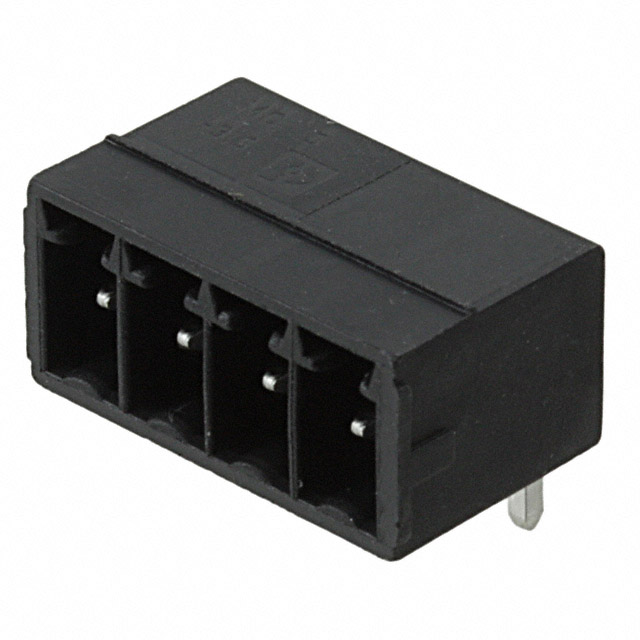

1722008
Or copy the link below:
- Mfr.Part #
- 1722008
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 4POS 90DEG 3.81MM
- Stock
- 30
- In Stock ：
- 30
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Voltage - Rated :
- 160V
- Pbfree Code :
- yes
- Color :
- Black
- Housing Material :
- Liquid Crystal Polymer (LCP)
- RoHS Status :
- RoHS Compliant
- Voltage :
- 300V
- Series :
- COMBICON MC
- Max Current Rating :
- 8A
- Number of Levels :
- 1
- Header Orientation :
- 90°, Right Angle
- Factory Lead Time :
- 12 Weeks
- Current :
- 8A
- Number of Ways :
- 4
- Packaging :
- Bulk
- Contact Mating Finish :
- Tin
- Safety Approval :
- CB; CUL; EAC; UL; VDE
- Insulation Height :
- 0.272 6.91mm
- Number of Rows :
- 1
- Contact Tail Length :
- 0.102 2.60mm
- Termination Style :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Current Rating :
- 8A
- Published :
- 2014
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Copper
- Pitch :
- 0.150 3.81mm
- Voltage - UL :
- 300V
- Fastening Method :
- Connector
- Voltage - IEC :
- 250V
- Number of Positions Per Level :
- 4
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole
- Number of Decks :
- 1
- Datasheets
- 1722008
Bulk 0.150 3.81mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MC Liquid Crystal Polymer (LCP) Tin Copper
1722008 Overview
The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MC Series of products.The part is mounted by Through Hole.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
1722008 Features
COMBICON MC series
1722008 Applications
There are a lot of Phoenix Contact
1722008 Terminal Blocks applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
