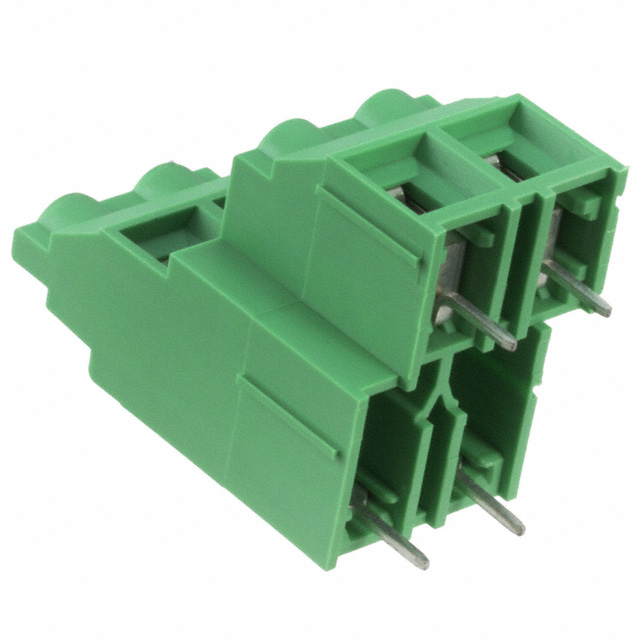

1719015
Or copy the link below:
- Mfr.Part #
- 1719015
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2P SIDE ENT 9.53MM PCB
- Stock
- 150
- In Stock ：
- 150
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Wire to Board
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge :
- 10-30 AWG
- Published :
- 2007
- Contact Material :
- Tin
- Mount :
- Through Hole
- Voltage - Rated :
- 690V
- Mating Orientation :
- Horizontal with Board
- Pbfree Code :
- yes
- Flammability Rating :
- UL94 V-0
- Terminal and Terminal Block Type :
- BARRIER STRIP TERMINAL BLOCK
- Safety Approval :
- UL
- Length :
- 23.8mm
- Number of Positions :
- 2
- Number of Pins :
- 4
- Number of Decks :
- 1
- Reach Compliance Code :
- Unknown
- Voltage :
- 600V
- Width :
- 28mm
- RoHS Status :
- RoHS Compliant
- Orientation :
- Straight
- Max Current Rating :
- 32A
- Packaging :
- Bulk
- Max Supply Voltage :
- 690V
- Feature :
- Interlocking (Side)
- Screw Thread :
- M3
- Depth :
- 28mm
- Gender :
- Male
- Material :
- Polyamide
- Number of Rows :
- 1
- Housing Material :
- Polyamide (PA), Nylon
- Current Rating :
- 32A
- Wire Gauge (Max) :
- 30 AWG
- Torque - Screw :
- 0.5-0.6 Nm (4.4-5.3 Lb-In)
- Approval Agency :
- CSA, cULus
- Weight :
- 749.788188g
- Mounting Type :
- Through Hole
- Wire Termination :
- Screw - Rising Cage Clamp
- Factory Lead Time :
- 4 Weeks
- Current :
- 30A
- Lead Free :
- Lead Free
- Series :
- COMBICON MKKDS
- Termination :
- Screw
- Wire Gauge (Min) :
- 10 AWG
- ECCN Code :
- EAR99
- Stripping Length :
- 8mm
- Number of Ways :
- 2
- Height :
- 28mm
- Color :
- Green
- Pitch :
- 0.375 9.53mm
- Datasheets
- 1719015
0.375 9.53mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 10-30 AWG COMBICON MKKDS
1719015 Overview
Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON MKKDS Series.4 pins are present on the device.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.This chip should not be operated above 690V volts.
1719015 Features
COMBICON MKKDS series
1719015 Applications
There are a lot of Phoenix Contact
1719015 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
