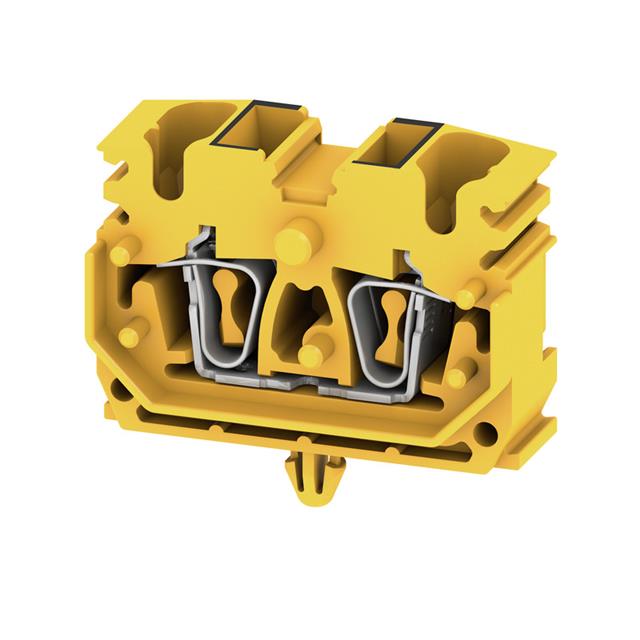

1713000000

Manufacturer :

Weidmuller

Product Category :

Specialized

Current :

21A

Pbfree Code :

yes

Termination Style :

Spring Cage

Published :

2009

Material Flammability Rating :

UL94 V-0

Height :

29mm

Current - UL :

20A

Safety Approval :

UL; CSA; CE

Feature :

Engagement Pin

Number of Positions :

4

Width :

10.2mm

ECCN Code :

EAR99

Wire Gauge or Range - AWG :

12-26 AWG

Wire Gauge (Max) :

26 AWG

Current Rating :

24A

Number of Decks :

1

Series :

Z

Material - Insulation :

Thermoplastic, Wemid

Operating Temperature :

-50°C~120°C

Wire Cross Section :

2.5 mm2

Voltage - Rated :

8kV

Length :

1.319 33.50mm

Voltage - IEC :

800V

Approval Agency :

CE, CSA, IEC, UR

Type :

Middle

Mounting Type :

Direct Mount

Factory Lead Time :

8 Weeks

Wire Gauge or Range - mm² :

0.5-4mm2

Lead Free :

Lead Free

Voltage :

600V

Wire Gauge (Min) :

12 AWG

Voltage - UL :

600V

Color :

Beige

Flammability Rating :

UL94 V-0

Number of Rows :

1

Fastening Method :

SPRING LOADED

Housing Color :

Yellow

Stripping Length :

10mm

RoHS Status :

RoHS Compliant

Number of Levels :

1
