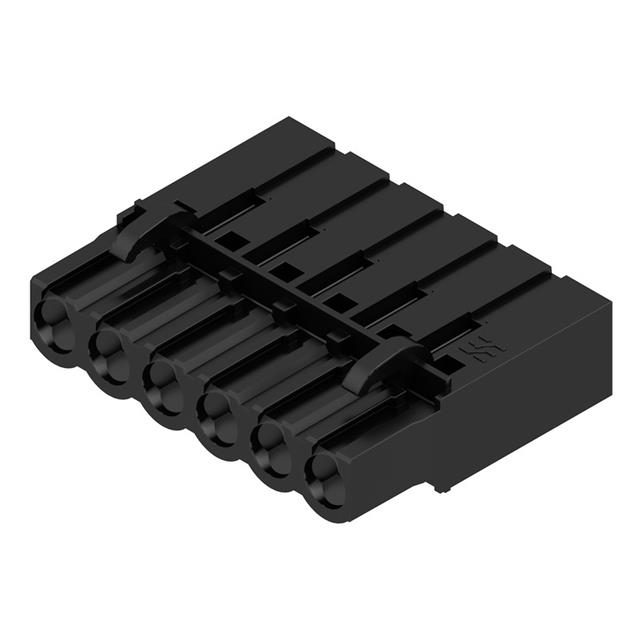

1712000000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Number of Contacts :

6

Lead Free :

Lead Free

Orientation :

Straight

Type :

Plug Housing for Female Sockets

Feature :

Retention Latches (Non-Wire Side)

Voltage - IEC :

400V

Wire Gauge (Max) :

26 AWG

Insulation Height :

0.397 10.08mm

Series :

Omnimate BL

Contact Plating :

Tin

Number of Positions :

6

Voltage :

300V

Termination Style :

Crimp

Pbfree Code :

yes

Flammability Rating :

UL94 V-0

Current :

10A

Pitch :

0.200 5.08mm

Radiation Hardening :

No

Number of Rows :

1

Filter Feature :

No

UL Flammability Code :

94V-0

Current - IEC :

21A

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Mixed Contacts :

No

Length :

30.5mm

Color :

Black

Wire Gauge (Min) :

14 AWG

IEC Conformance :

No

JESD-609 Code :

e3

Number of Levels :

1

Contact Finish - Mating :

Tin

Published :

2008

Option :

GENERAL PURPOSE

Contact Material :

COPPER ALLOY

Factory Lead Time :

12 Weeks

DIN Conformance :

No

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - AWG :

14-26 AWG

Mounting Type :

Free Hanging (In-Line)

MIL Conformance :

No

Mount :

Cable, Free Hanging

Plug Wire Entry :

180°

Operating Temperature :

-50°C~100°C

Width :

24.5mm

Housing Material :

Polybutylene Terephthalate (PBT), Glass Filled

Height :

10.1mm
