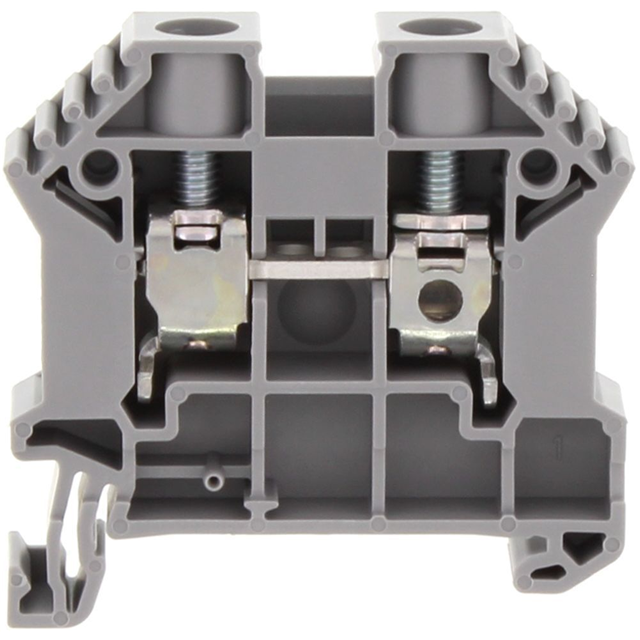

17112.6

Manufacturer :

Conta-Clip

Product Category :

Din Rail, Channel

Weight :

1.999889kg

RoHS Status :

RoHS Compliant

HTS Code :

8536.69.40.40

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

1998

Voltage - Rated :

1kV

Contact Plating :

Silver

Number of Decks :

1

Number of Ways :

2

Material :

Polyamide

Gender :

FEMALE

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

Safety Approval :

UL

Wire Gauge (Max) :

4 AWG

Housing Material :

Polyamide (PA), Nylon

Orientation :

Straight

ECCN Code :

EAR99

Wire Gauge or Range - mm² :

0.75-16mm2

Wire Gauge (Min) :

18 AWG

Wire Strip Length :

18mm

Number of Rows :

1

Width :

44.5mm

Wire Gauge or Range - AWG :

4-20 AWG

Type :

Plug, Female Sockets

Fastening Method :

SPRING LOADED

Color :

Green

Packaging :

Bulk

Termination Style :

Screwless - Spring Cage, Tension Clamp

Length :

20.32mm

Number of Poles :

2

Height :

25.1mm

Additional Feature :

PA, UL 94V-0

Voltage :

600V

Pitch :

0.400 10.16mm

Termination :

Screwless

Current - IEC :

76A

Flammability Rating :

UL94 V-0

Voltage - IEC :

1kV

Plug Wire Entry :

180°

Factory Lead Time :

4 Weeks

Current :

66A

Depth :

25.1mm

Current Rating :

76A

Series :

COMBICON SPC

Connector Type :

Socket

Insulation Height :

0.988 25.10mm

Mount :

Free Hanging, Plug-In

Mounting Type :

Free Hanging (In-Line)

Number of Levels :

1

Approval Agency :

CB, UL
